The City Multi® S Series (for small applications) makes use of a two-pipe refrigerant system, which allows for system changeover from cooling to heating, ensuring that a constant indoor climate is maintained in all zones. The compact outdoor unit utilizes R410A refrigerant and an inverter driven compressor for effective energy use. With a wide line-up of indoor units connected to a flexible piping system, the City Multi® S Series can be configured to suit diverse applications. Thanks to the individual operation of up to 12 units and a group change function, the City Multi® S Series can flexibly accommodate layout changes in stores and offices.

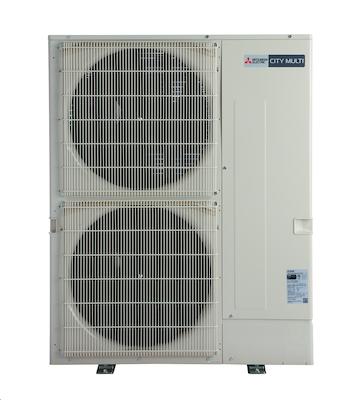

Mitsubishi Electric Outdoor Unit, S Series, 208/230 V, 29 A, 3545 W, 3880 W Power, 60 Hz Frequency, 1 ph, Heating BTU Rating: 54000 Btu/hr, Cooling BTU Rating: 48000 Btu/hr, 11.3, 13.1 EER, 16.5, 22.6 SEER, 11, 12 HSPF, Inverter Driven Scroll Hermetic Compressor, R-410A Refrigerant, 3/8 in Liquid Line, 5/8 in Suction Line, 44 A Fuse, Tonnage: 4 ton, Heating Sound Level: 54 dBA, Cooling Sound Level: 51 dBA, Galvanized Sheet, Munsell, Heating Operating Temperature: -13 to 59 deg F, Cooling Operating Temperature: 23 to 115 deg F, 52-11/16 in Overall Length, 41-11/32 in Overall Width, 13 in Overall Height, Additional Information: 3885 cfm Air Flow
Note: This is a closeout item with limited stock available. Please contact your branch for availability.
- All City Multi® outdoor units as standard come with Blue Fin treatment to protect the aluminum heat exchanger fins from urban environment pollutants
- Single phase outdoor unit with variable refrigerant zoning technology
- Inverter driven (variable speed) compressor
- Connects up to 12 indoor units
- Uses City Multi® indoor units and controls network
- Low ambient cooling operation down to -40 deg C
