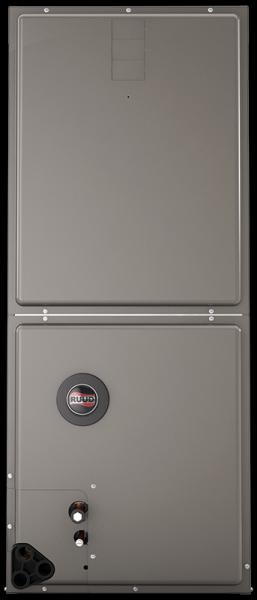

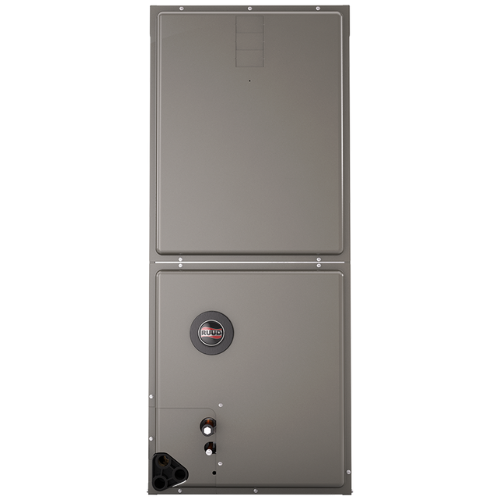

RUUD® Line Air Handler, Model: WH1PY, 42000 Btu/hr Cooling, 42000 Btu/hr, 208-240 V, 5.2 A, 12.31 kW, 1/2 hp Rating, 60 Hz, 1 ph, 1075 rpm Rotational Speed, Multi-Poise Configuration, 13.4 to 15.2 SEER, R-454B, 1400 to 1600 cfm, 15 A Fuse, 3/8 in Liquid Line, 7/8 in Suction Line, 20 x 20 in Filter, 1 Stage, 2 Speed, PSC Motor, Steel, 50-1/2 in H x 21 in W, Additional Information: TXV Metering Device, Standard Efficiency, Non-Communicating Control
Note: TACL and EPA license required to buy refrigerant and refrigerant bearing equipment, RUUD® not available in Houston locations
| Motor Type | PSC |
| Nominal Capacity | 3.5 Ton |
| Refrigerant Type | R-454B |
| BTU Rating | 42000 BTU/hr |
| Voltage Rating | 208-240/1/60 |
- Peace of Mind Performance: Relax, you're covered by some of the best warranties in the industry - 5 Year Limited Parts
- Quiet Operation: Provided by a sturdy cabinet construction with 1.0 inch of foil faced insulation for quieter sound characteristics
- Rugged Steel Cabinet Construction: Designed for added strength and versatility
