The Ruud® Endeavor® Line of Air Handlers makes it simple to relax in affordable, reliable comfort, offering high energy efficiency, quiet operation and reduced energy bills.

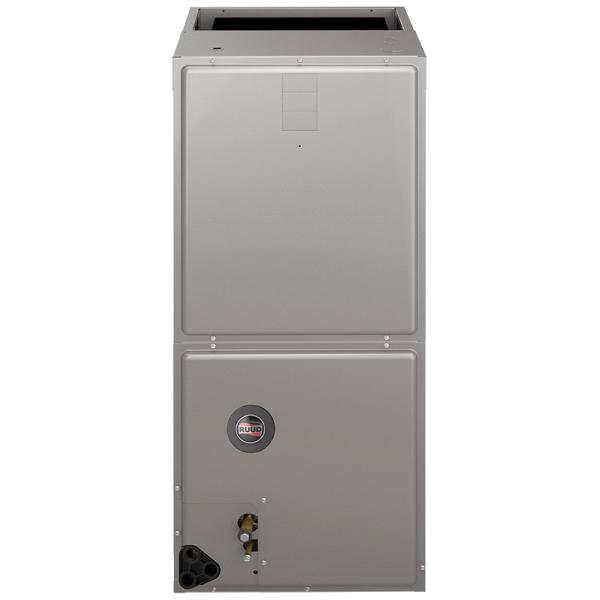

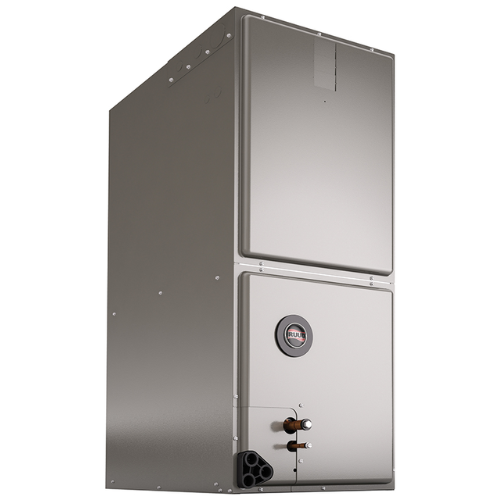

RUUD® Multi-Poise Air Handler, Model: RH2TY, 5 ton Nominal Capacity, 60000 Btu/hr Cooling, 60000 Btu/hr, 208/240 V, 10 A, 17.58 kW, 3/4 hp Rating, 60 Hz, 1 ph, 300 to 1100 rpm Rotational Speed, 1600 to 1725 cfm CFM Rating, Downflow, Horizontal, Upflow Configuration, 13.4 to 16 SEER, Sweat Connection Type, R-454B, 15 A Fuse, 3/8 in Liquid Line, 7/8 in Suction Line, 20 x 20 in Filter, 2 Stage, 4 Speed, Constant Torque Motor, Steel, 57 in H x 21 in W x 21-11/16 in D, Additional Information: Standard Efficiency, TXV Metering, Non-Communicating Control, N Coil Series
Note: TACL and EPA license required to buy refrigerant and refrigerant bearing equipment, RUUD® not available in Houston locations
| Motor Type | Constant Torque (ECM) |
| Nominal Capacity | 5.0 Ton |
| Number of Stages | 2 |
| Refrigerant Type | R-454B |
| BTU Rating | 60000 BTU/hr |
| Voltage Rating | 1 ph, 208-240/1/60 |
- Peace of Mind Performance: Relax, you're covered by some of the best warranties in the industry - up to 10 Year Limited Parts.
- Quiet Operation: Provided by a sturdy cabinet construction with 1.0 inch of foil faced insulation for quieter sound characteristics
- Optimal Comfort: Constant Torque Motor and two-stage operation ensures a steady stream of just-right heated airflow to maintain your comfort level preference while providing humidity control.
