With the Ruud® Endeavor® Line of Air Conditioners, keeping your home comfortable has never been so reliable—or sustainable. Every model is designed to deliver high efficiency and dependable energy savings, so you can keep consistently cool.

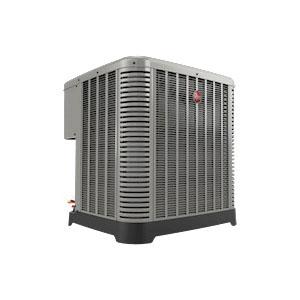

RUUD® Air Conditioner, Series: RA14AY Line Achiever® Series, 3 ton Nominal Capacity, 33600 Btu/hr Cooling, 36000 Btu/hr, 460 V, 18 A, 10.55 kW, 1/6 hp Rating, 825 rpm Rotational Speed, 60 Hz, 3 ph, Scroll Compressor, 1030 cfm CFM Rating, 11.7 EER, 14.3 SEER, 1 Stage, R-454B, 3/8 in Liquid Line, 3/4 in Suction Line, 71 dBA, 13.3 sq-ft Coil Rating, 30 A Fuse, 33-3/4 in W x 33-3/4 in D Base, 24 FPI Fins per Inch, Steel, Powder-Coated, 25 in H x 33-3/4 in W x 33-3/4 in D, Additional Information: Non-Communicating Controls
Note: TACL and EPA license required to buy refrigerant and refrigerant bearing equipment, RUUD® not available in Houston locations
| Compressor Type | Scroll |
| Nominal Capacity | 3.0 Ton |
| Number of Stages | 1 |
| Voltage Rating | 460/3/60 |
| BTU Rating | 36000 BTU/hr |
| Refrigerant Type | R-454B |
- Peace-Of-Mind Performance: Relax, you're covered by one of the best warranties in the industry-10 Year Conditional Parts.
- Reduced Environmental Impact: The 7mm condenser coilsq. provides a decrease in refrigerant requirements up to 15%, lowering the amount of greenhouse gases emitted while contributing to our sustainability goal of a 50% reduction in our greenhouse gas footprint by 2025. A win for all of us.
- Rugged Curb Appeal: Curved louvered panels and rugged corner posts provide excellent protection to internal components, while modern cabinet aesthetics including the corrosion-resistant composite base pan and powder coat paint system allow your unit to put its best face forward for years to come.
- Quiet Operation: Efficient home comfort shouldn't be noisy. That's why our air conditioners are engineered with acoustics in mind. Integrated sound-dampening features such as refrigerant tubing design, fan blade approach, composite base pan and innovative compressor and drive technologies let you enjoy more efficiency-and less noise.
