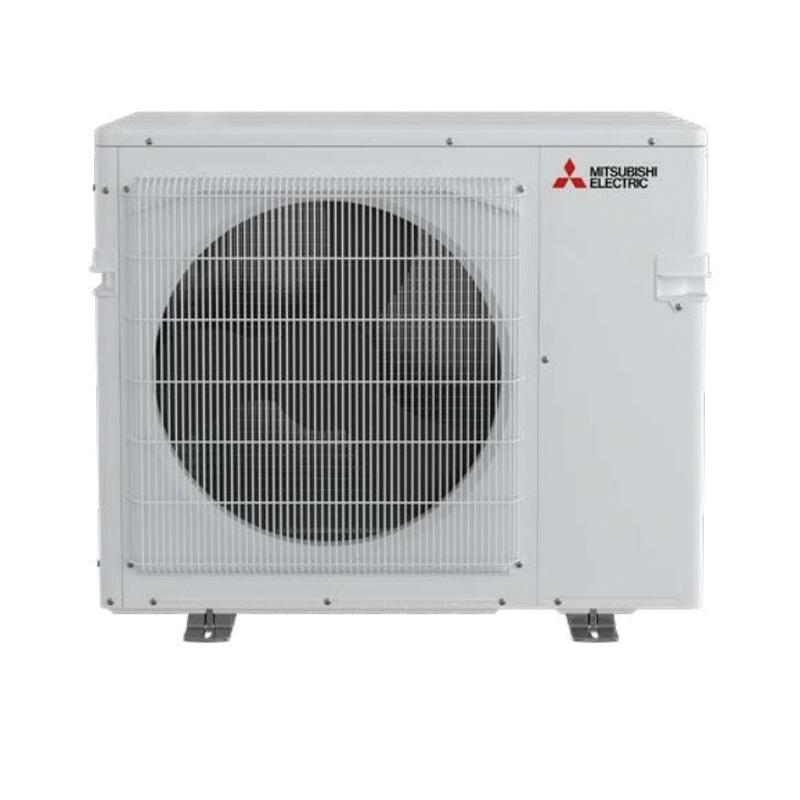

Mitsubishi Electric Trane® Outdoor Heat Pump Unit, 208/230 V, 28.7 A, 4040 W Cooling, 3700 W Heating, 60 Hz, 1 ph, 30600 Btu/hr Heating, 22000 Btu/hr Cooling, 2228 cfm Heating CFM Rating, 2119 cfm Cooling CFM Rating, 13.7 EER Rating, 20 SEER, 10 HSPF, Flared Connection, Twin Rotary Compressor, R-454B Refrigerant, 1/4 in Liquid Line, 1/2 in, 3/8 in Suction Line, 48 A Fuse Rating, 55 dBA Heating Sound Level, 51 dBA Cooling Sound Level, Ivory, 65 to 75 deg F Heating Operating Temperature, 14 to 115 deg F Cooling Operating Temperature, 13 in Overall Length, 37-11/32 in Overall Width, 31-11/32 in Overall Height
Note: TACL and EPA license required to buy refrigerant and refrigerant bearing equipment
- Compact, small chassis
- Compressor overcurrent detection
- Compressor thermal protection
- Fan motor overheating/voltage protection
- Freeze-prevention base pan heater equipped as standard
- High-pressure protection
- Prolonged heating over an extended duration
- Quiet outdoor unit operation as low as 52 dB(A)
- Rated for 2,000 hours spraying time per ASTM B117 Standard
- Variable speed INVERTER-driven compressor
- Blue Fin anti-corrosion treatment applied to the outdoor unit heat exchanger for increased coil protection and longer life
Instruction/Installation Manual
