Renaissance products are designed with a flexible footprint, thoughtfully engineered for easy, direct replacement of most other manufacturer's products without a roofcurb adapter. These units also boast industry-leading serviceability features, including the slide out, qwik-clean drain pan, the qwik-slide blower assembly, tool-less access to the patented flex-fit filter rack, and lockable external gauge ports. Units meet or exceed ASHRAE 90.1 energy efficiency levels and are rigorously SEET tested to perform reliably in extreme environments, delivering powerful cooling operation up to 125degF.

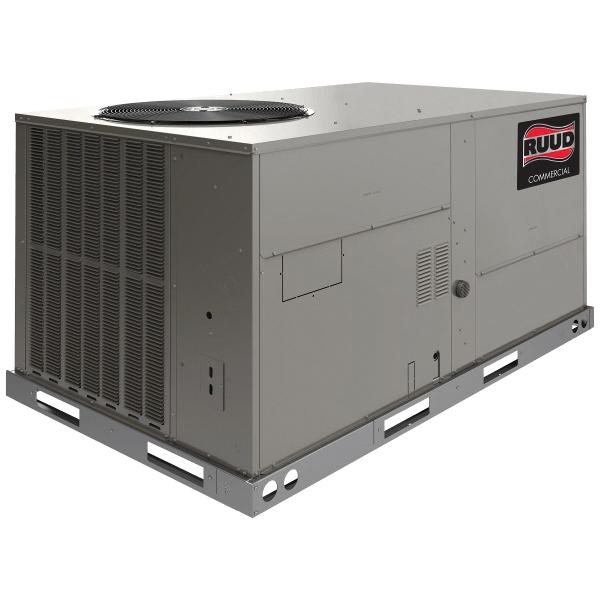

RUUD® Renaissance™ Gas/Electric Package Unit, Series: Achiever®, Output BTU Rating: 72000 Btu/hr, 460 V, 1-1/5 hp Indoor, 3/4 hp Outdoor, 1300 rpm Indoor, 1100 rpm Outdoor Rotational Speed, 60 Hz, 3 ph, Scroll Compressor, Configuration: Horizontal Sideflow, Vertical Downflow, 2400 cfm, 14.8 IEER, 11.2 EER Rating, Tonnage: 6 ton, 2 Stages, R-454B Refrigerant, 85 dB Decibel, Direct Drive, 1-Row 20 FPI 8.41 sq-ft Face Area Indoor, 1-Row 23 FPI 16.46 sq-ft Face Area Outdoor Coil, 3/4 in Drain Connection, (4) 2 x 16 x 16 in Filter, Steel, Finish: Galvanized, 41-3/8 in H x 79-1/4 in W x 46-3/4 in D, Additional Information: Standard Static Constant Torque Drive, Small Commercial Cabinet, Standard Efficiency
Note: TACL and EPA license required to buy refrigerant and refrigerant bearing equipment, RUUD® not available in Houston locations
- Optional hot gas reheat (HumidiDry®) available on all models, including single phase power units for tighter humidity control and better comfort
- Patented flex-fit filter rack and qwik-clean drain pain for quick, easy service and maintenance
- Patented Velocifin® gas heat exchanger assembly for better heat transfer and easier service and maintenance
- PlusOne® Diagnostics come standard through CoreCommand™ with easy-to-read and understand fault codes, history, and input/output options to meet building compliance needs
- Optional ClearControl™ includes factory-installed Direct Digital Control (DDC) and sensors for easy connectivity through Modbus®, LonWorks®, or BACnet®
- Available power options: 208-230V / 1 phase / 60 Hz, 208-230V / 3 phase / 60 Hz, 460V / 3 phase / 60 Hz, 575V / 3 phase / 60 Hz
- Limited Warranty (Commercial Applications): Parts - 1 Year, Compressor - 5 Years, Standard Heat Exchanger - 10 Years, Stainless Steel Heat Exchanger - 20 Years
- Additional extended warranty packages available through ProtectionPlus®
- All units are factory run tested and shipped with R-454B refrigerant charge
