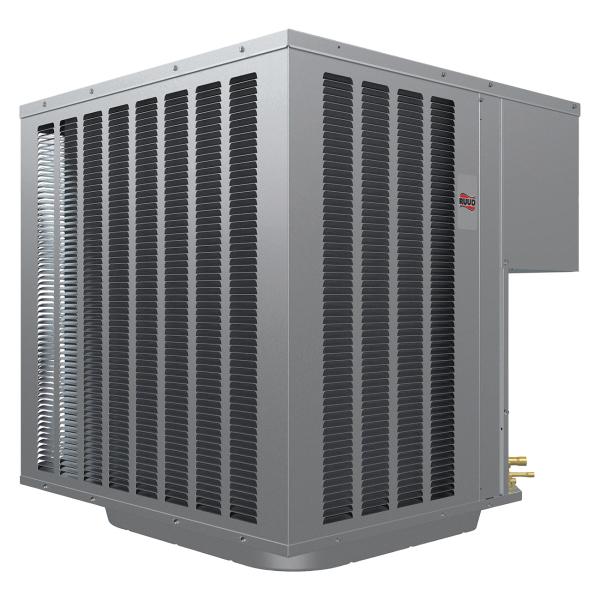

RUUD® Endeavor® Heat Pump, Series: Achiever®, 208-230 V, 20 A, 234 W, 1/5 hp, 60 Hz, 1 ph, 850 rpm Rotational Speed, 36000 Btu, 4077 cfm, 9 EER Rating, 14.3 SEER, 7.5 HSPF, Scroll Compressor, R-454B Refrigerant, 3/8 in Liquid Line, 3/4 in Suction Line, 30 A Fuse Rating, 1-Row, 19-1/2 sq-ft Face Area, 22 FPI Coil, Tonnage: 3 ton, 72 dB Sound Level, 2 Stages, 35 in H x 33-3/4 in W x 33-3/4 in D
Note: TACL and EPA license required to buy refrigerant and refrigerant bearing equipment, RUUD® not available in Houston locations
| CFM Rating | 4077 cfm |
| Coil Rating | 1-Row, 19-1/2 sq-ft Face Area, 22 FPI |
| Compressor Type | Scroll |
| Dimensions | 35 in H x 33-3/4 in W x 33-3/4 in D |
| EER Rating | 9 |
| Frequency Rating | 60 Hz |
| Fuse Rating | 30 A |
| HSPF Rating | 7.5 |
| Number of Stages | 2 |
| Power Rating | 234 W |
| Rotational Speed | 850 rpm |
| SEER Rating | 14.3 |
| Series | Classic® Series |
| Sound Level | 72 dB |
| Tonnage | 3 ton |
| Voltage Rating | 208-230 V |
| Amperage Rating | 20 A |
| BTU Rating | 36000 Btu |
| HP Rating | 1/5 hp |
| Phase | 1 ph |
| Refrigerant Type | R-454B |
- Swept Wing Fan Technology: Features quieter operation and improved unit acoustics
- Two-Stage Scroll Compressor: Features two speeds (high and low) of cooling and heating, providing more precise temperature control, lower humidity and greater efficiency when compared to single stage compressors
- Inverted Reversing Valve: Allows for faster heat transfer with gravity assist shifting and reduced joint stress for increased reliability
- PlusOne® Expanded Valve Space: 3 in. - 4 in. - 5 in. service valve space-provides a minimum working area of 27-square inches for easier access
- PlusOne® Triple Service Access: 15 in. wide, industry leading corner service access, two fastener, removeable corner and individual louver panels-makes repairs easier and faster
