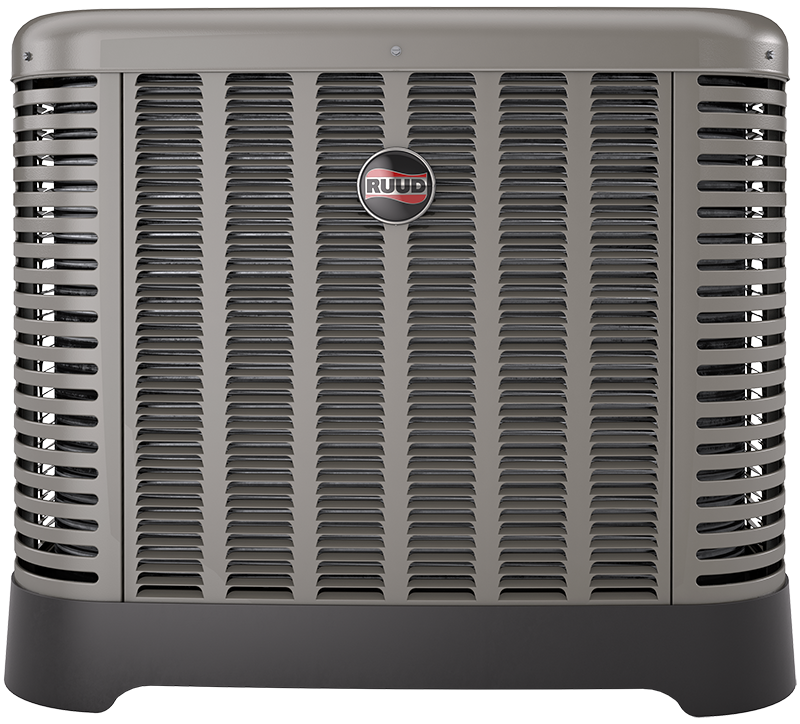

RUUD® Endeavor® Air Conditioner, Series: Achiever®, 3.5 ton Nominal Capacity, 40000 Btu/hr Cooling Capacity, 42000 Btu/hr, 208-230 V, 20 A, 225 W Wattage, 1/5 hp, 850 rpm Rotational Speed, 60 Hz, 1 ph, Scroll Compressor, 3431 cfm, 11.7 EER Rating, 14.3 SEER, 1 Stage, R-454B Refrigerant, 3/8 in Liquid Line, 7/8 in Suction Line, 73 dB Sound Level, 2-Row Coil, 30 A Fuse Rating, 19-1/2 sq-ft Face Area, 24 FPI Fins per Inch, 35 in H x 33-3/4 in W x 33-3/4 in D, Additional Information: 15 RLA/109 LRA Compressor, 1 FLA/2.6 LRA Condenser Fan Motor
Note: TACL and EPA license required to buy refrigerant and refrigerant bearing equipment, RUUD® not available in Houston locations
| Type | Outdoor Unit |
- 7mm Condenser Copper Coil: Requires less refrigerant allowing for a smaller and lighter footprint while enhancing reliability
- PlusOne® Expanded Valve Space: 3 in. - 4 in. - 5 in. service valve space - provides a minimum working area of 27-square inches for easier access
- PlusOne® Triple Service Access: 15 in. wide, industry leading corner service access, two fastener, removable corner and individual louver panels - makes repairs easier and faster
- Swept Wing Fan Technology: Features quieter operation and improved unit acoustics
- Designing for Sustainability with Low GWP: For 2025, the Environmental Protection Agency (EPA) has set a global warming potential (GWP) limit of 700 for refrigerant used in heating and cooling systems. This new requirement will result in a 78%2 lower GWP than previous-generation refrigerants - with only minimal changes to system installation. For us, this is another step toward our continued sustainability goal of reducing greenhouse gas emissions, while still delivering an exceptional level of energy efficient, dependable comfort
- PlusOne® Refrigerant Detection System™3: An integrated one-box, patented design featuring the A2L sensor and mitigation board, offering easier commissioning with a single component and simplified wiring configuration, compatibility with any 24V thermostat application and system protection by automatically pausing outdoor unit operation - if excess refrigerant is detected
Specification Sheet
