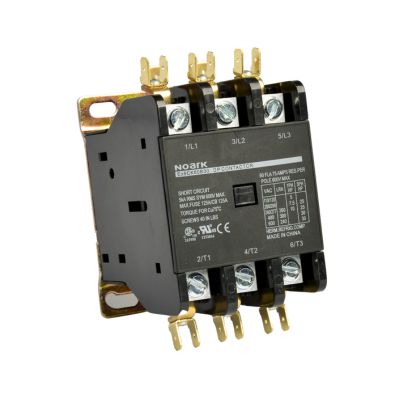

NOARK DP Contactors provide high performance with both flexibility and reliability. They are designed to match numerous applications.
Noark Definite Purpose Contactor, 240 V, 60 A, 50 Hz, 3 Poles, Auxiliary Contact, 600 V Contact Rating, 1NO-1NC Contact Configuration, Lug Connection, Class B Insulation Class, 1000000 cycles Operating Cycles, 266 deg F
| Amperage Rating | 60 A |
| Coil Voltage | 240 V |
| Number of Poles | 3 |
- NOARK DP Contactors provide high performance with both flexibility and reliability
- Enclosed coil standard for all 3-pole frame sizes
- Industry standard mounting plate provides easily accessible mounting holes
- Lug connections with quick connect spades
- Coil is Class B 266 deg F insulation system with a wide range of voltages
- Double E magnet assembly provides optimal performance with reduced power consumption
- 1NO+1NC auxiliary contact block with 600 volt rating is an available option on 3-pole contactors
- Base assembly is made from high arc-resistant polyester
- 5 years warranty
- Lug terminal type
- Silver cadmium contact material
- 50/60 hz frequency rating
- Class b insulation
- 1000000 operating cycles
