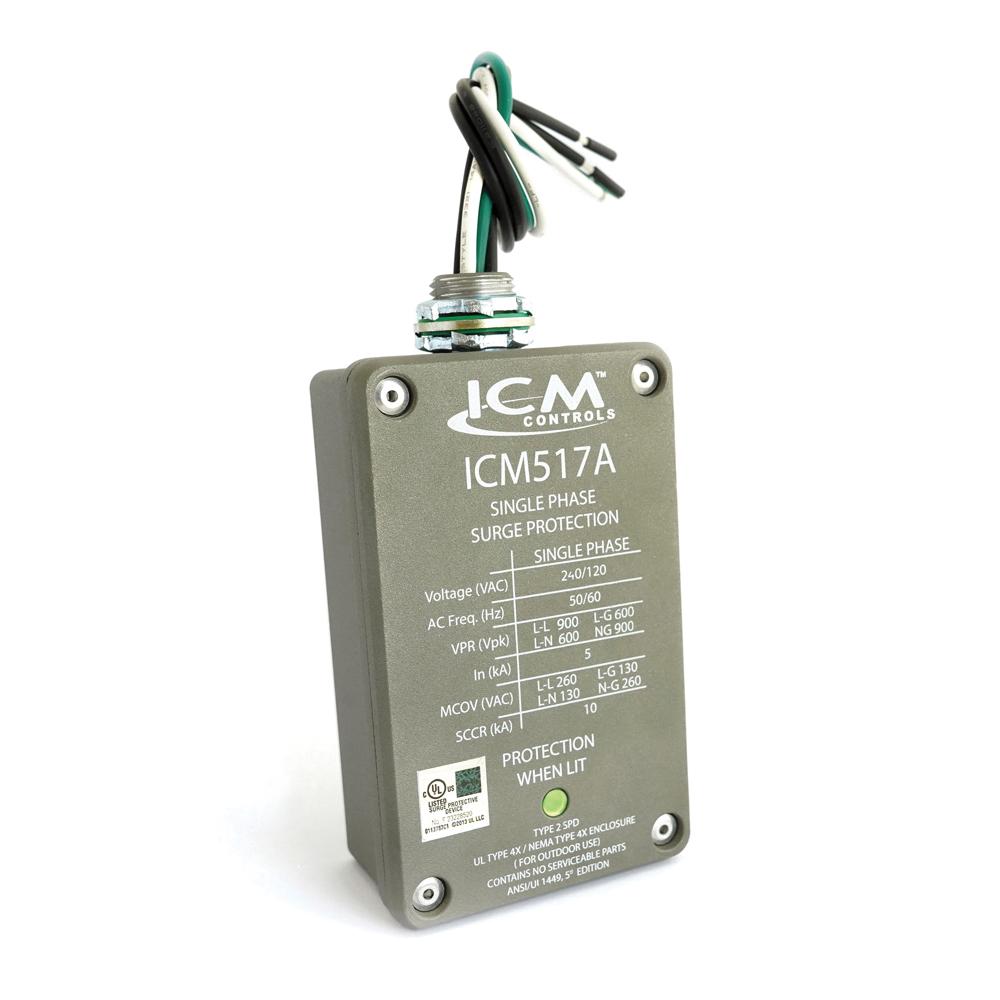

The ICM517A is a NEMA Type 4X enclosed Type 2 Surge Protective Device (SPD) designed to protect valuable single-phase equipment by dissipating momentary voltage spikes and transient power surges. Applications include the protection of motors, electronics, air conditioning systems, appliances, refrigeration, and more. The tried and true, preexisting industry favorite ICM517 SPD recently received an update, which prompted the designation of an "A" to the end of the preexisting part number. With 100,000's of ICM517's installed in the field, ICM stayed true to the rugged & reliable design of the existing "go to" SPD, the new ICM517A Type 2 Surge Protective Device is now constructed even more robust.
ICM™ Surge Protection Device, 120/240 VAC, 15 to 60 A, 50/60 Hz, 1 ph, NEMA 4X, Metal, 5 in Length, 3.06 in Width, 1-3/4 in Height, Additional Information: 100000 A Maximum Surge Current, 1020 J Maximum Energy Dissipation
- Built to withstand the high impact of a major surge event
- Constructed in a robust Cast Aluminum enclosure for maximum durability
- Featuring a redesigned rivet sealed molded case with an internal gasket
- Nema Type 4X rated for indoor/outdoor installation
- Featuring a thinner, more compact profile then previous versions
- Updated to the latest addition of UL standards
- Withstands effects of prolonged UV exposure better then ABS plastics
- UL Rated Powder Coating for superior corrosion resistance
- Easy Installation
- Proudly Made in America
- Limited lifetime product, up to a 3-year $25,000 connected equipment warranty
