Note: Not available in Houston locations

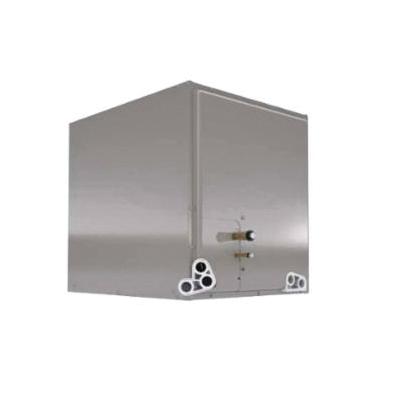

RUUD® Endeavor™ Furnace Cooling Coil, Series: RCFZ Series, 48000 Btu/hr, Multi-Poise Configuration, 600 to 1900 cfm Rating, R-410A, Cased A Coil, 3/4 in Connection, NPT Connection Type, 2 Rows, 8.55 sq-ft Face Area, Aluminum, 35 in H x 21 in W x 21-11/16 in D, For Use With: Gas and Oil Furnaces, Additional Information: Standard Efficiency, EXV Metering Device
Note: This is a closeout item with limited stock available. Please contact your branch for availability.
| Coil Rating | Cased A |
| Configuration | Multi-Poise |
| Connection Size | 3/4 in |
| Connection Type | NPT |
| Face Area | 8.55 sqft |
| Number of Rows | 2 |
| Refrigerant Type | R-410A |
| Series | RCFZ Series |
| Suitable For Use With | Gas and Oil Furnaces |
| BTU Rating | 48000 Btu/hr |
| CFM Rating | 600 to 1900 cfm |
| Material | Aluminum |
- Constructed of aluminum fins bonded to internally grooved aluminum tubing
- Coils are tested at the factory with an extensive refrigerant leak check
- Coils have copper sweat refrigerant connections
- Feature two sets of 3/4 in NPT condensate drain connections for ease of connection
- Approved for system application with variety of RUUD® outdoor units
- Condensate drain pan is constructed of high-grade, heat-resistant, corrosion-free thermal set material
- Compatible with germicidal light system (UV-resistant)
- Bi-directional airflow eliminates the need to switch any internal components from horizontal left to right
- Unique drain pan design maximizes application flexibility and condensate removal
- Coils are AHRI certified for system application with a variety of RUUD® outdoor units
Specification Sheet
