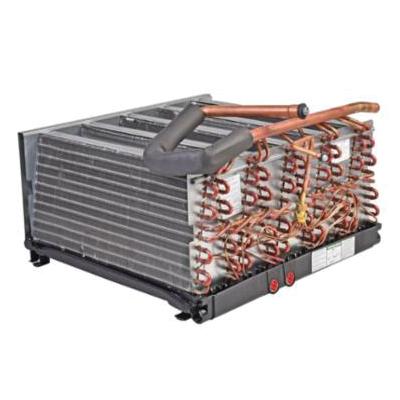

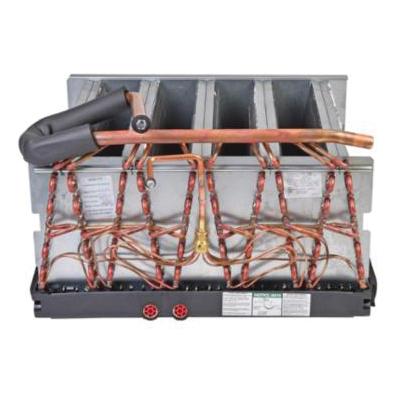

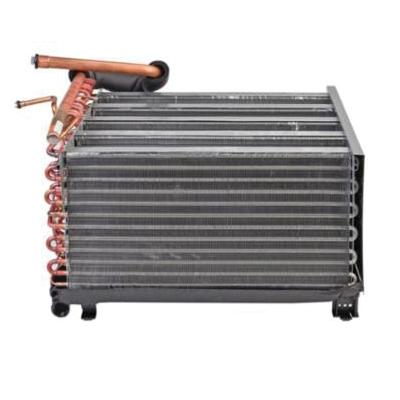

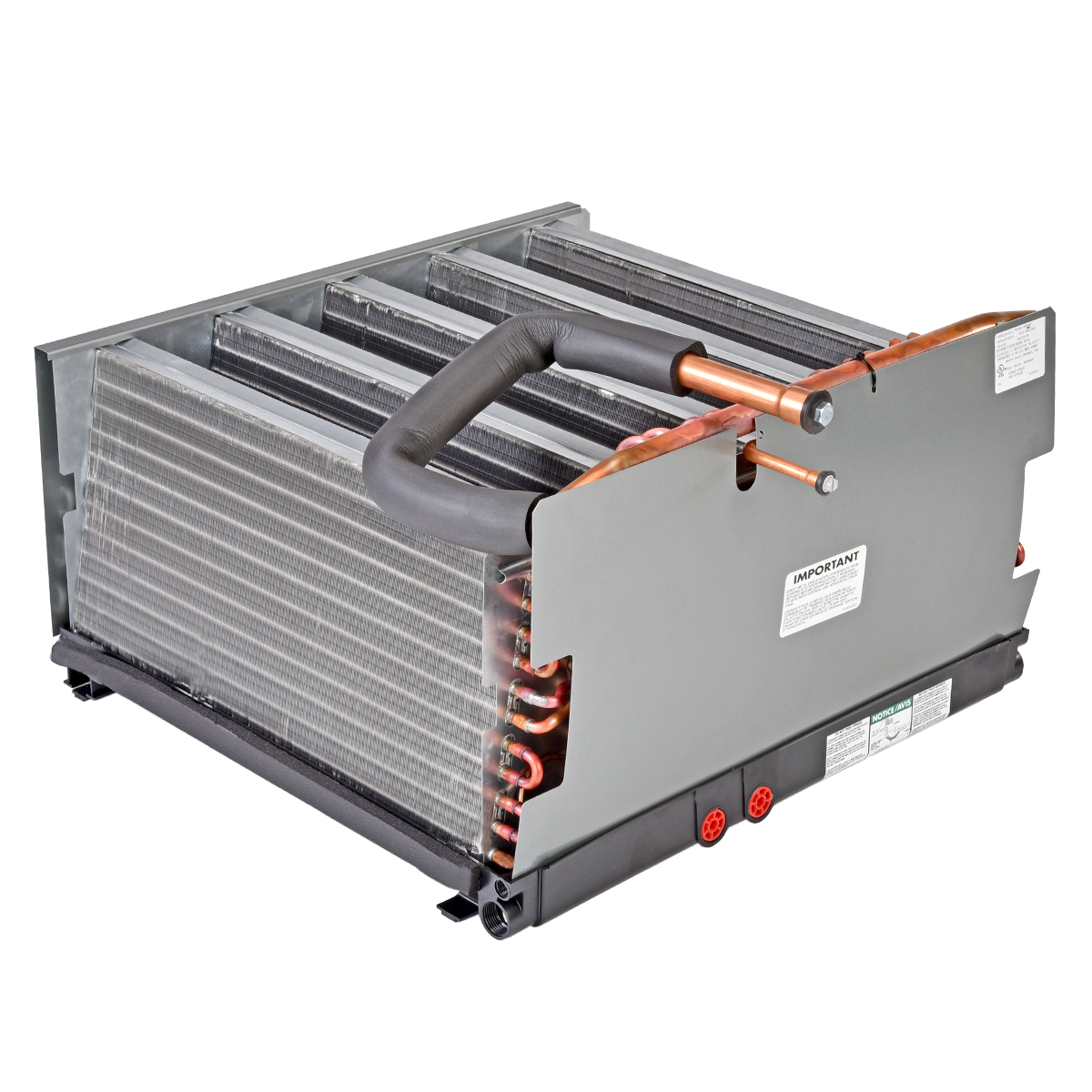

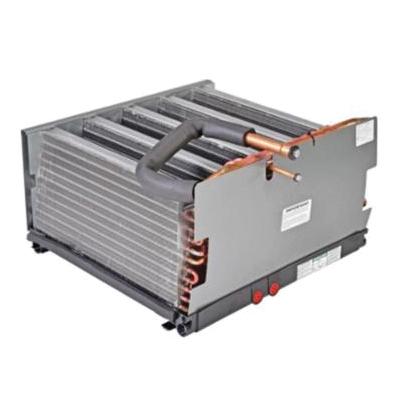

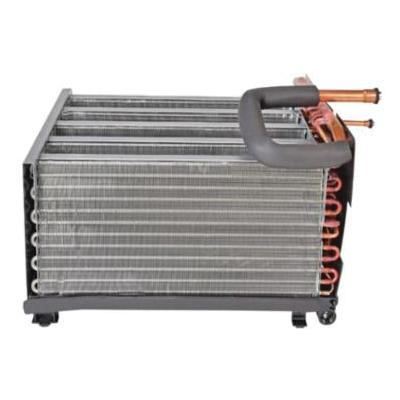

RUUD® Value Series indoor coils are designed for use with RUUD® Value Series outdoor units in up flow, down flow and horizontal configurations. The MultiFlex® coils provide nominal capacities ranging from 18000 to 60000 Btu/hr. The patented single-row, single-coil pleated concept results in extremely low pressure drops and corresponding easy cleaning. Drain connections may be made from either side of the coil.
RUUD® Universal Replacement Indoor Evaporator Coil, Series: RCBA Value Series, 5 ton Nominal Capacity, 60000 Btu/hr, Horizontal, Uncased, Upflow/Downflow Configuration, 2000 cfm Rating, 10 SEER, 5 ton Tonnage, R-410A, Flowcheck Standard Coil, 3/8 in, 3/4 in Connection, Sweat x FNPT Connection Type, 1 Rows, 10 Number of Slabs, 12.67 sq-ft Face Area, 89 in Orifice, 18 in, Copper, Tin-Plated, 13-25/32 in H x 22-3/4 in W, Additional Information: Flowcheck Piston Metering Device
| Configuration | Horizontal, Uncased, Upflow/Downflow |
| Connection Size | 3/8 in, 3/4 in |
| Connection Type | Sweat x FNPT |
| Dimensions | 13-25/32 in H x 22-3/4 in W |
| Face Area | 12.67 sq-ft |
| Fin Size | 18 in |
| Finish | Tin-Plated |
| Nominal Capacity | 5 ton |
| Number of Rows | 1 |
| Number of Slabs | 10 |
| Orifice Size | 89 in |
| Refrigerant Type | R-22 |
| SEER Rating | 10 |
| Series | RCBA Value Series |
| Coil Type | Flowcheck Standard |
| Tonnage | 5 ton |
| BTU Rating | 60000 Btu/hr |
| CFM Rating | 2000 cfm |
| Material | Copper |
- Constructed of enhanced aluminum fins bonded to inner grooved copper tubing
- Coils have sweat fitting refrigerant connections
- Primary condensate drain connections are 3/4 in FNPT
- Coils are ARI certified for system application with a wide variety of RUUD® Value Series outdoor units
- Condensate drain pan is constructed of a high-grade, heat-resistant, corrosion-free polymer material
