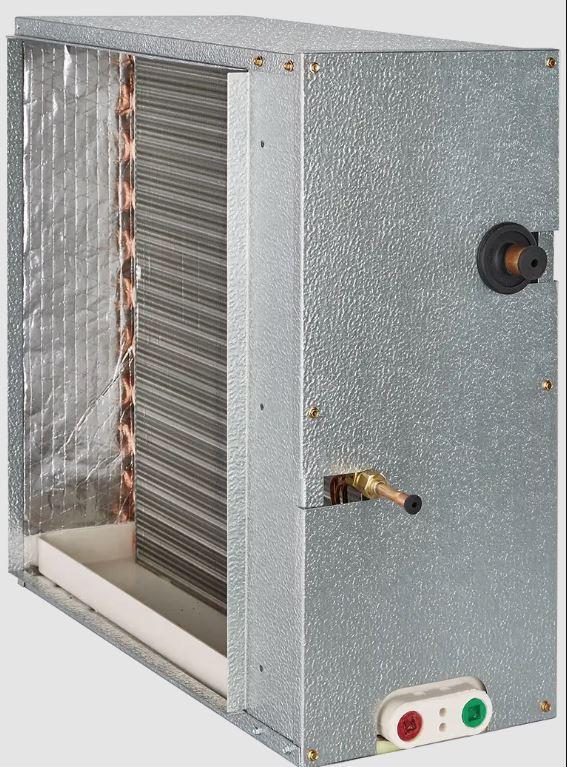

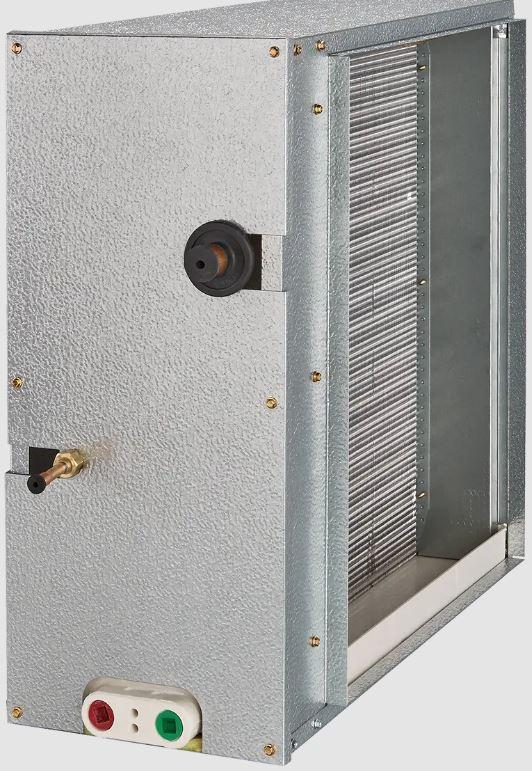

The HH Series premier horizontal evaporator coils match perfectly with any system and are thoroughly tested to ensure quality and save time on installation.
ADP® Premier Evaporator Coil, Series: HH Series, 3 to 5 ton Nominal Capacity, 60000 Btu/hr, Cased, Horizontal, 1200 to 2000 cfm CFM Rating, 3 to 5 ton, R-410A, R-22, Type H Coil, 3/8 in, 7/8 in, ODF, #93 Piston Size, 500 psi, Copper/Steel, Embossed, 22-3/4 in H x 35 in W x 10 in D, Additional Information: TXV Access Port, Piston Metering Device, Lanced Fin, Bi-Directional Airflow, 30-5/8 in W x 21-1/4 in H Cabinet Opening (Note: TACL and EPA license required to buy equipment)
| Configuration | Cased, Horizontal |
| Connection Size | 3/8 in, 7/8 in |
| Connection Type | ODF |
| Dimensions | 22-3/4 in H x 35 in W x 10 in D |
| Finish | Embossed |
| Nominal Capacity | 3 to 5 ton |
| Piston Size | #93 |
| Pressure Rating | 500 psi |
| Refrigerant Type | R-410A, R-22 |
| Series | HH Series |
| Coil Type | Type H |
| Tonnage | 3 to 5 ton |
| BTU Rating | 60000 Btu/hr |
| CFM Rating | 1200 to 2000 cfm |
| Material | Copper/Steel |
- High efficiency lanced fin design
- Coils are air pressure tested at 500 psi, leak tested with helium, sealed with rubber plugs and then charged with dry air
- Piston options include externally accessible body for easy piston change out and/or TXV installation
- Liquid line refrigerant connections are 3/8 in ODF
- Suction line refrigerant connections are 7/8 in ODF
- Microban® anti-microbial additive to inhibit the growth of mold and mildew in the drain pan
- UV-resistant drain pans are molded of high temperature engineered polymer (450 deg F)
- Cased coil cabinets are fully lined with 5/8 in foil faced insulation
- Non-captive refrigerant lines with long stubs make for easy installation
- Copper distributor tube assembly provides brass to brass threads for trouble-free service of TXV
- Corrosion-resistant coil header plates
- All coils have durable packaging with bar coded labels on the box
