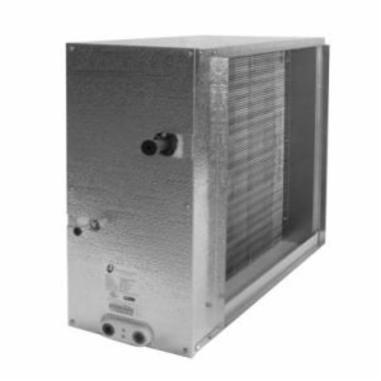

ADP® Evaporator Coil, 18 MBtu/hr, 600 to 1600 cfm CFM Rating, 2.5 to 4 ton, R-410A, Cased H Coil, ODF, Copper, Embossed, 22-3/4 in H x 31 in W x 10 in D (Note: TACL and EPA license required to buy equipment)
| Connection Type | ODF |
| Dimensions | 22-3/4 in H x 31 in W x 10 in D |
| Finish | Embossed |
| Refrigerant Type | R-410A |
| Coil Type | Cased H |
| Tonnage | 2.5 to 4 ton |
| BTU Rating | 18 MBtu/hr |
| CFM Rating | 600 to 1600 cfm |
| Material | Copper |
- High-efficiency lanced fin design
- R-22, R-410A, AC and heat pump compatible
- All coils have durable packaging with bar-coded labels on the box
- Coils are air pressure tested at 500 lb/sq-in, leak tested with helium, sealed with rubber plugs and then charged with dry air
- Liquid line refrigerant connections are 3/8 in ODF
- Suction line refrigerant connections are 7/8 in ODF
- Microban® anti-microbial additive to inhibit the growth of mold and mildew in the drain pan
- UV-resistant drain pans are molded of high-temperature (450 deg F) engineered polymer
- Cased coil cabinets are fully lined with 5/8 in foil faced insulation
- Non-captive refrigerant lines with long stubs make for easy installation
- Copper distributor tube assembly provides brass to brass threads for trouble-free service of TXV
- Corrosion-resistant coil header plates
