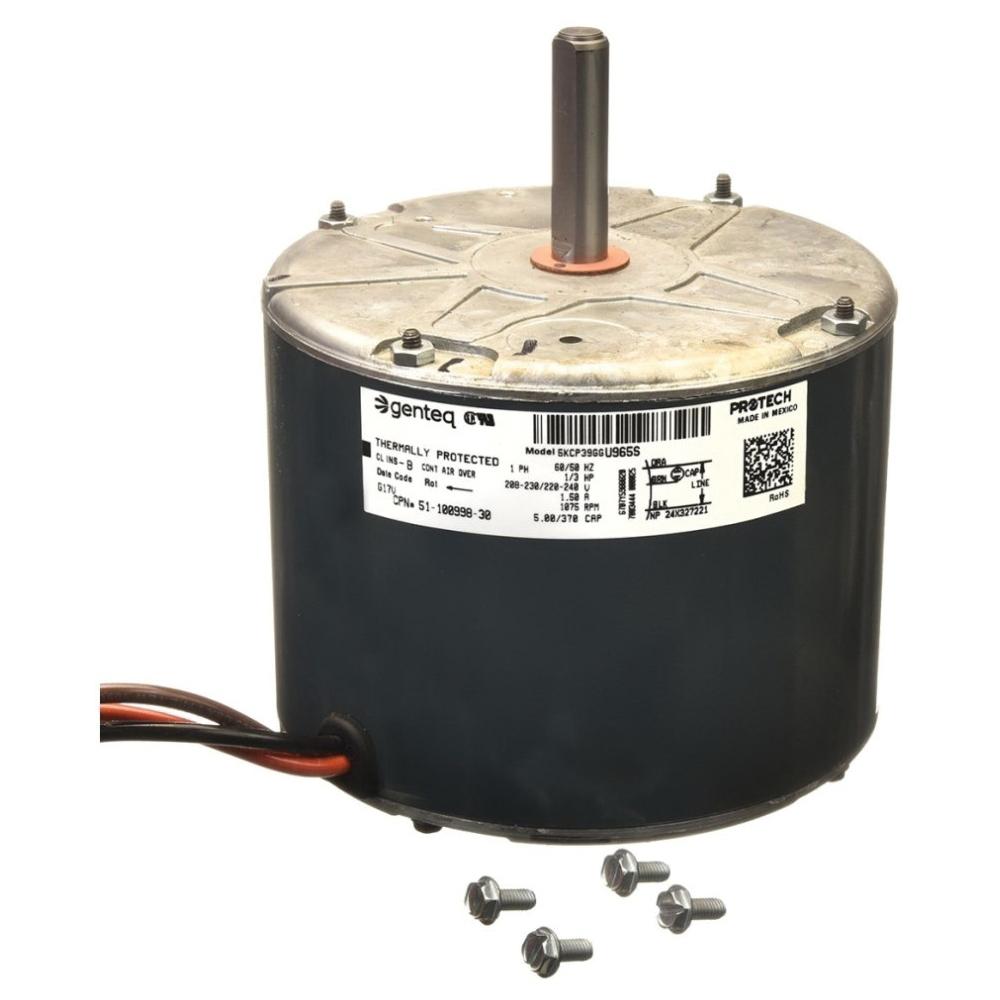

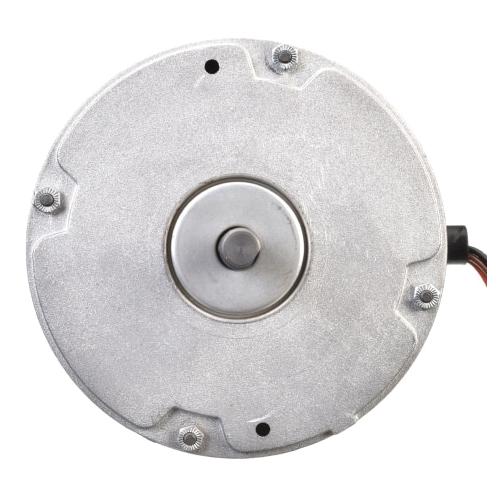

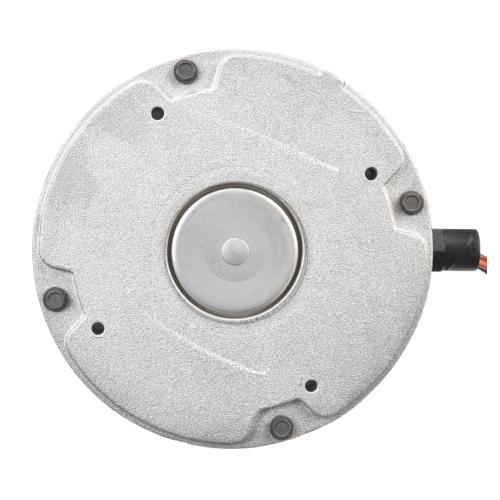

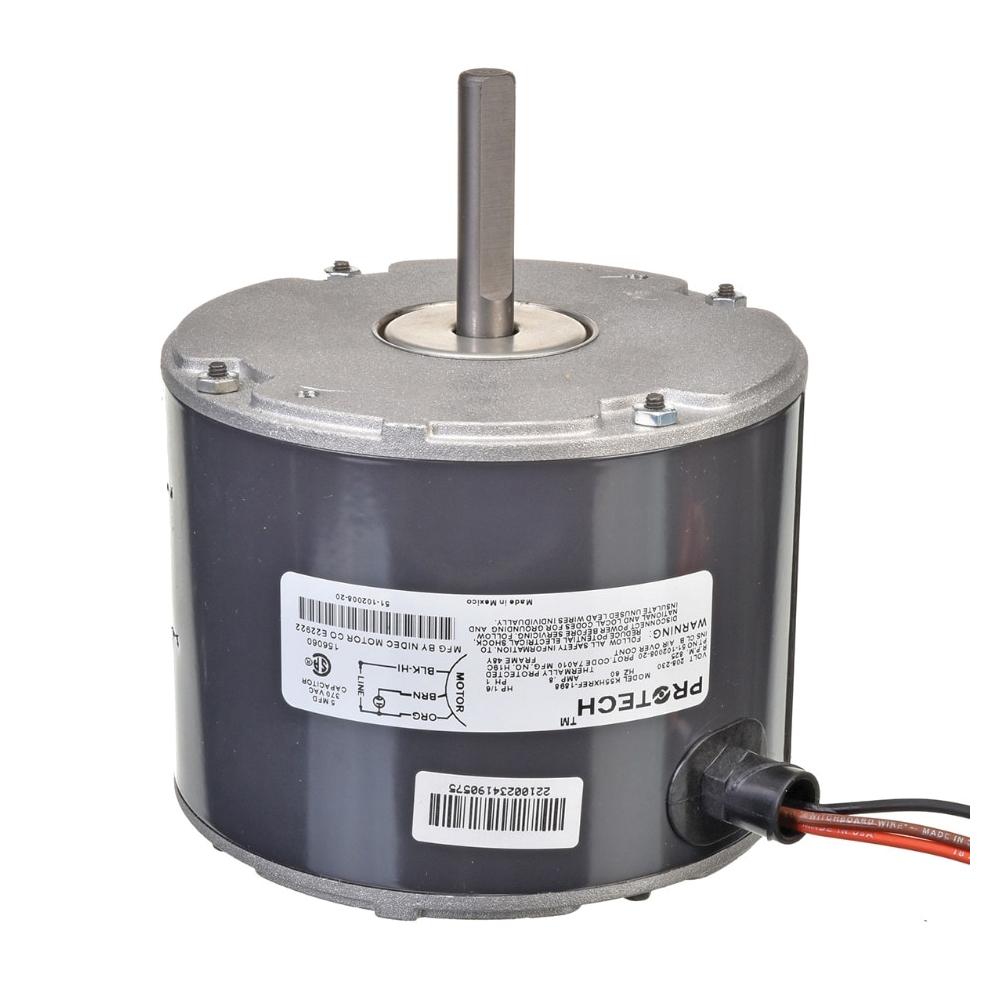

RUUD® Condenser Motor, 1/6 hp HP Rating, 208/220/230 V, 1.5 A, 60 Hz, 1 ph, 825 rpm Speed Rating, 1 Speed, 48 Frame, 1/2 in Dia x 2-1/4 in L Shaft, Ball Bearing, 5-5/8 in Overall Width, 6-9/16 in Overall Height, Additional Information: Clockwise/Counter-Clockwise Rotation, Direct Drive
| Amperage Rating | 1.5 A |
| Bearing Type | Ball |
| Number of Speeds | 1 |
| Overall Height | 6-9/16 in |
| Overall Width | 5-5/8 in |
| Shaft Size | 1/2 in Dia x 2-1/4 in L |
| HP Rating | 1/6 hp |
| Voltage Rating | 208/220/230 V |
| Frequency Rating | 60 Hz |
| Phase | 1 ph |
| Frame | 48 |
| Speed Rating | 825 rpm |
- These motors are OEM replacements for Rheem, Ruud and WeatherKing models
- Suitable for aftermarket retrofit in many other applications
