The 36G is a combination gas control valve designed for use with non-piloted intermittent ignition systems. The control is designed to meet today's maximum capacity, smaller size and high efficiency gas systems.

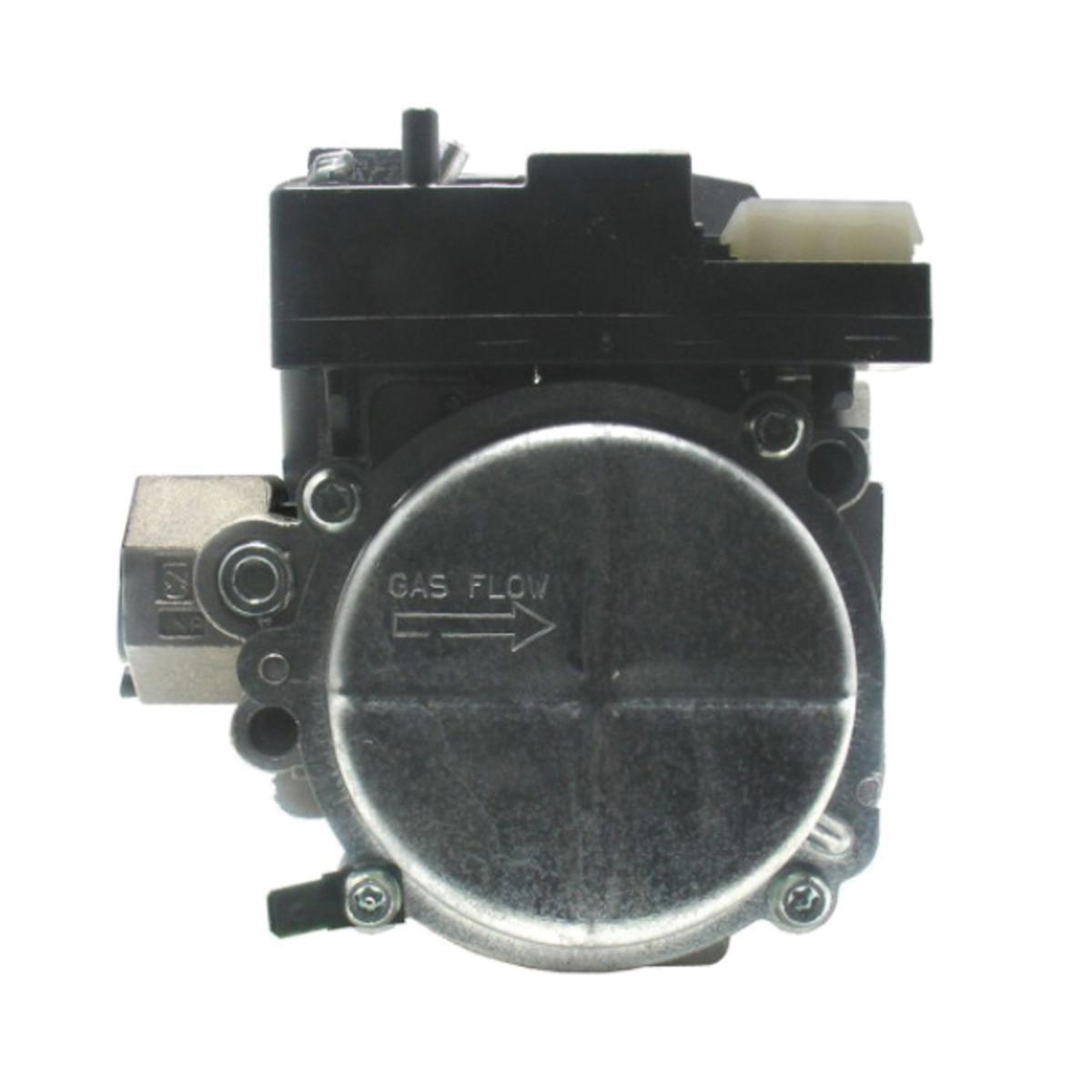

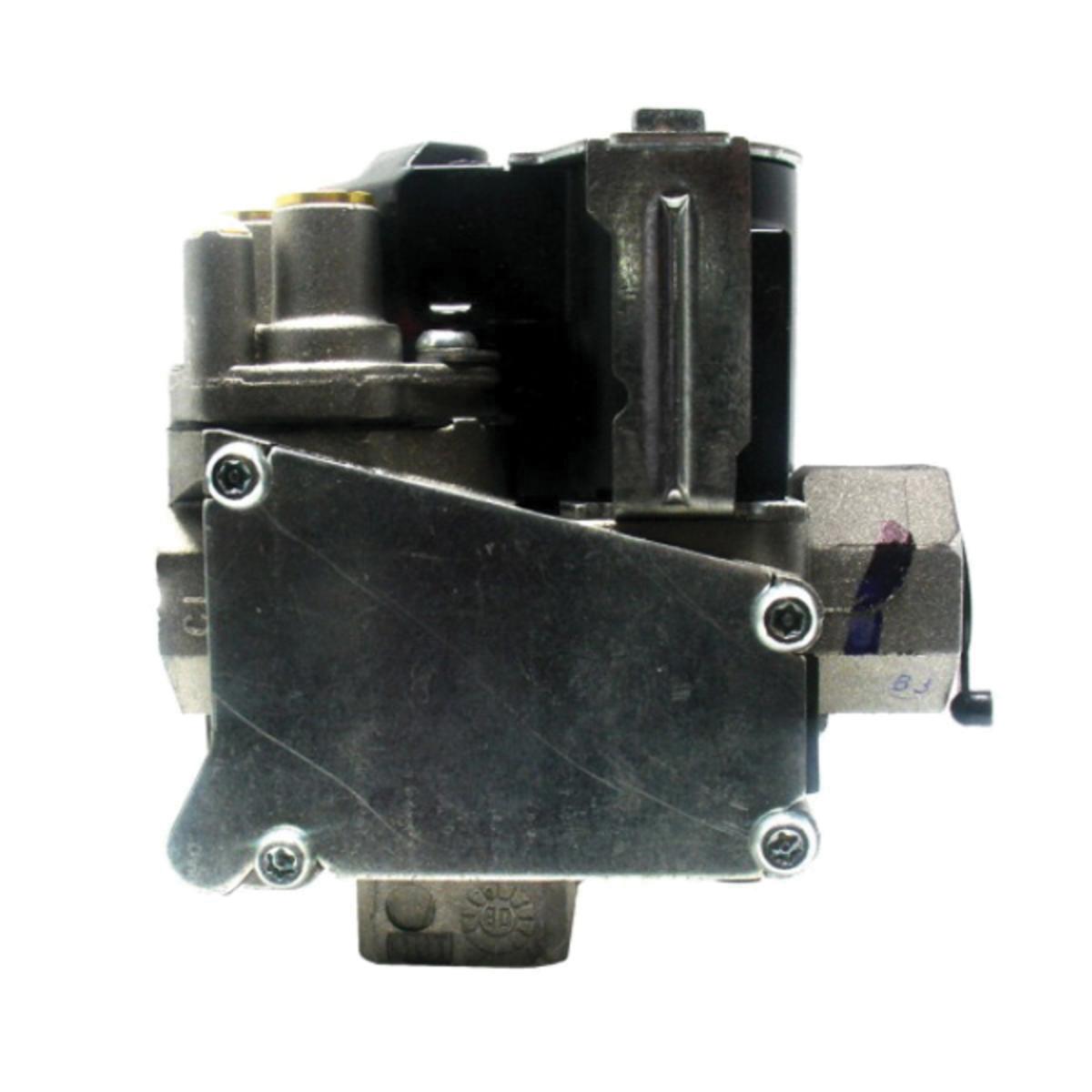

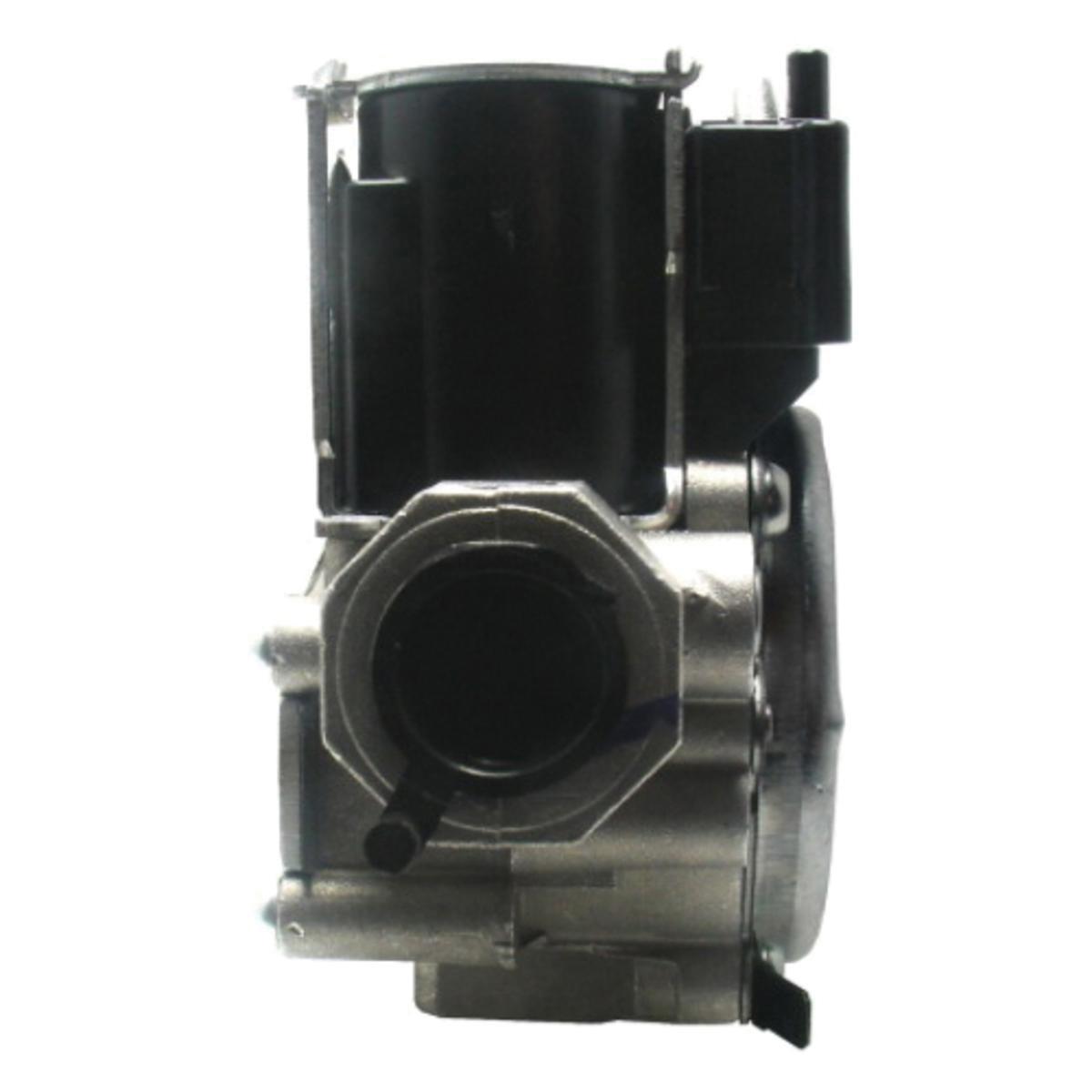

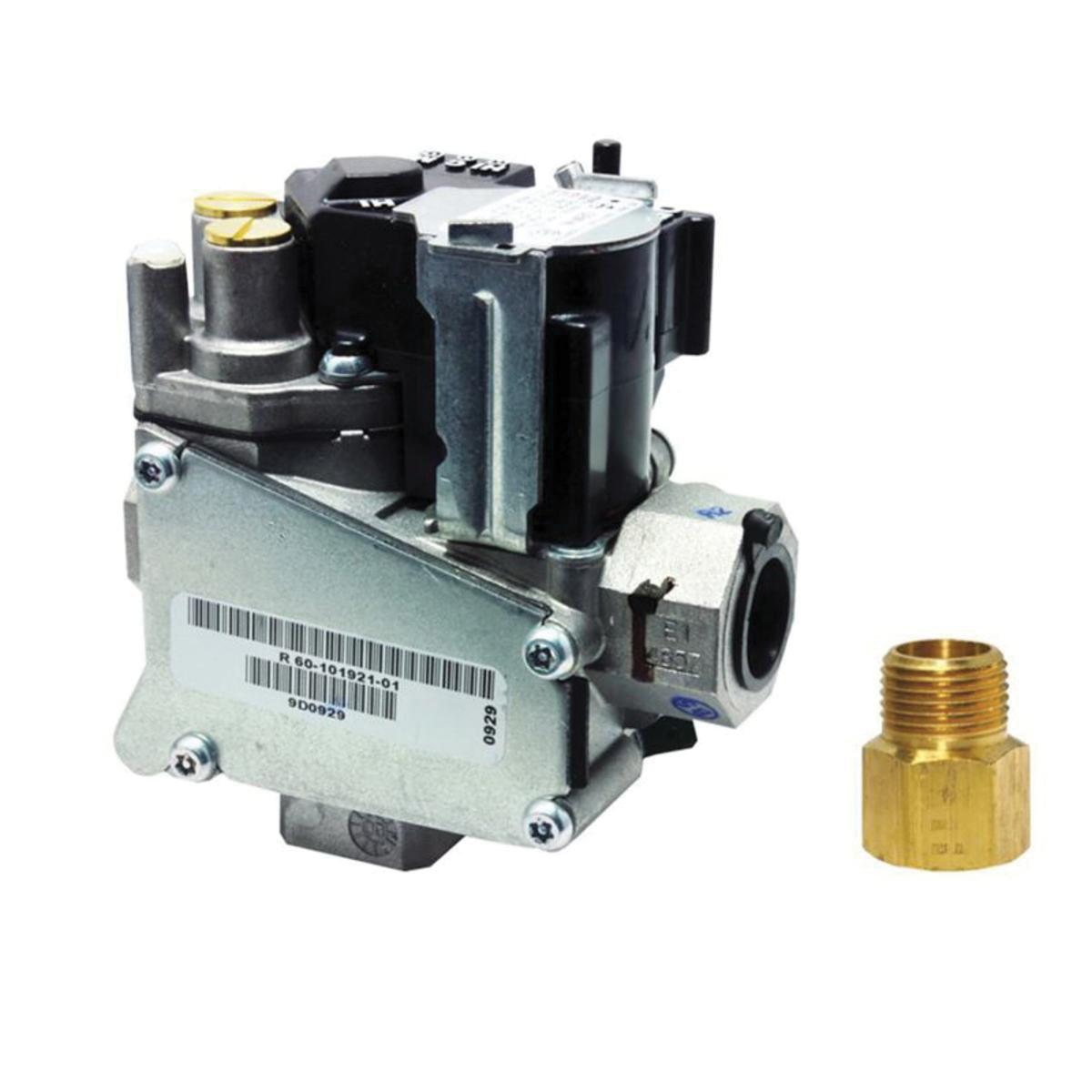

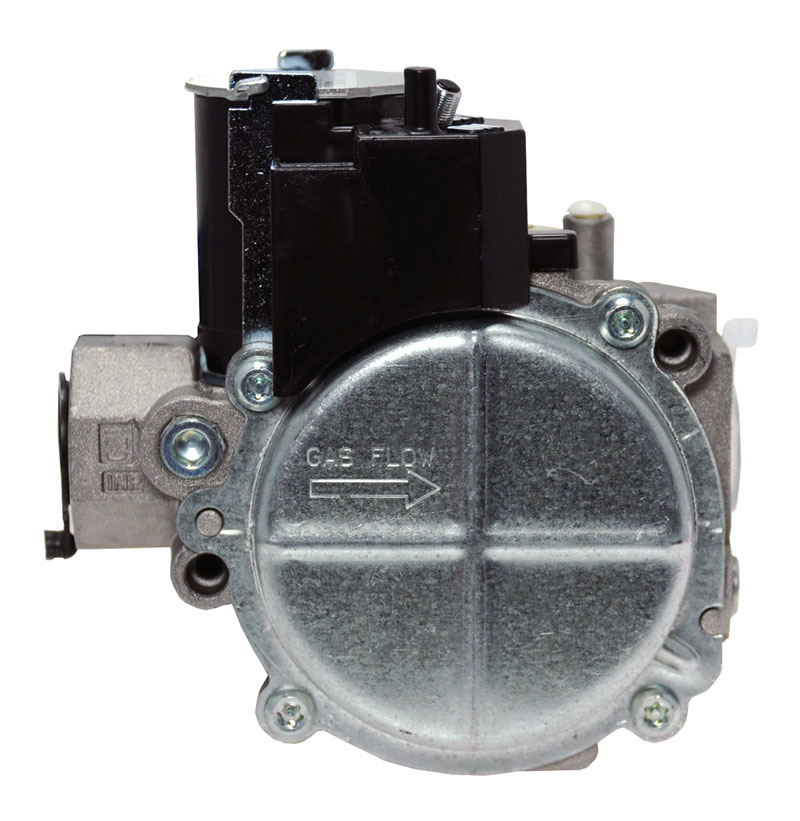

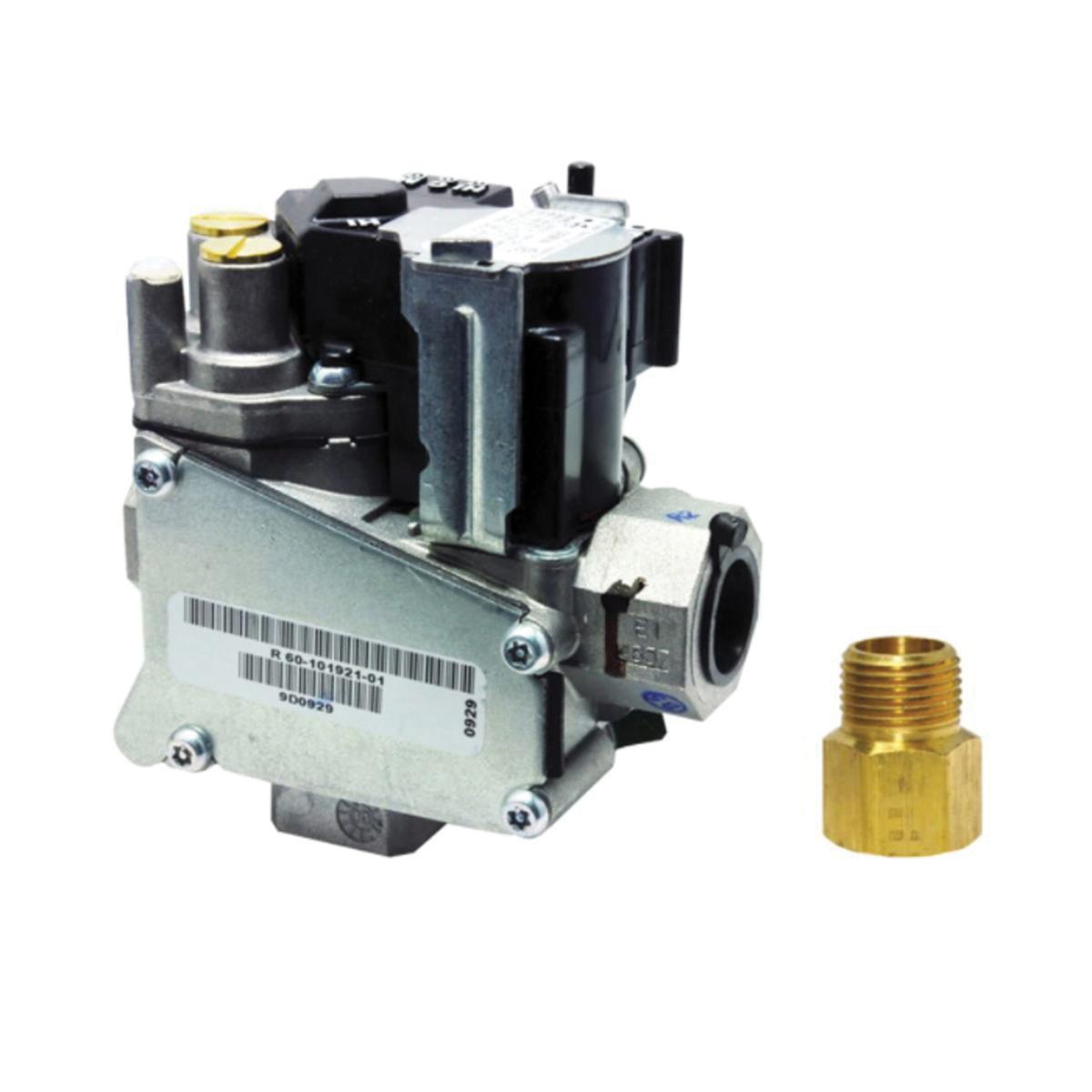

RUUD® Combination Gas Valve, 36G Series, 1/2 in Nominal, NPT End, 2-7/16 in Width, 4-1/4 in Height, 4 in Depth, For Use With: Model R802P-MSA, MXA, ZSA, ZSB, R802T-MSA, MXA, R802V-MSA, MXA, ZSA, ZSB, RGLK, RGLL, RGLQ, RGLR, RGPK, RGPL, RGPQ, RGPR, RGRK, RGTK Gas Furnaces, Additional Information: 140000 Btu/hr Nominal Capacity, 24 V Voltage, Direct Ignition, Hot Surface, Natural Gas Fuel, Two Stages

• Inlet and outlet screens
• Quiet redundant
• Built-in pressure tap
• Quick-connect terminals (1/4 in)
