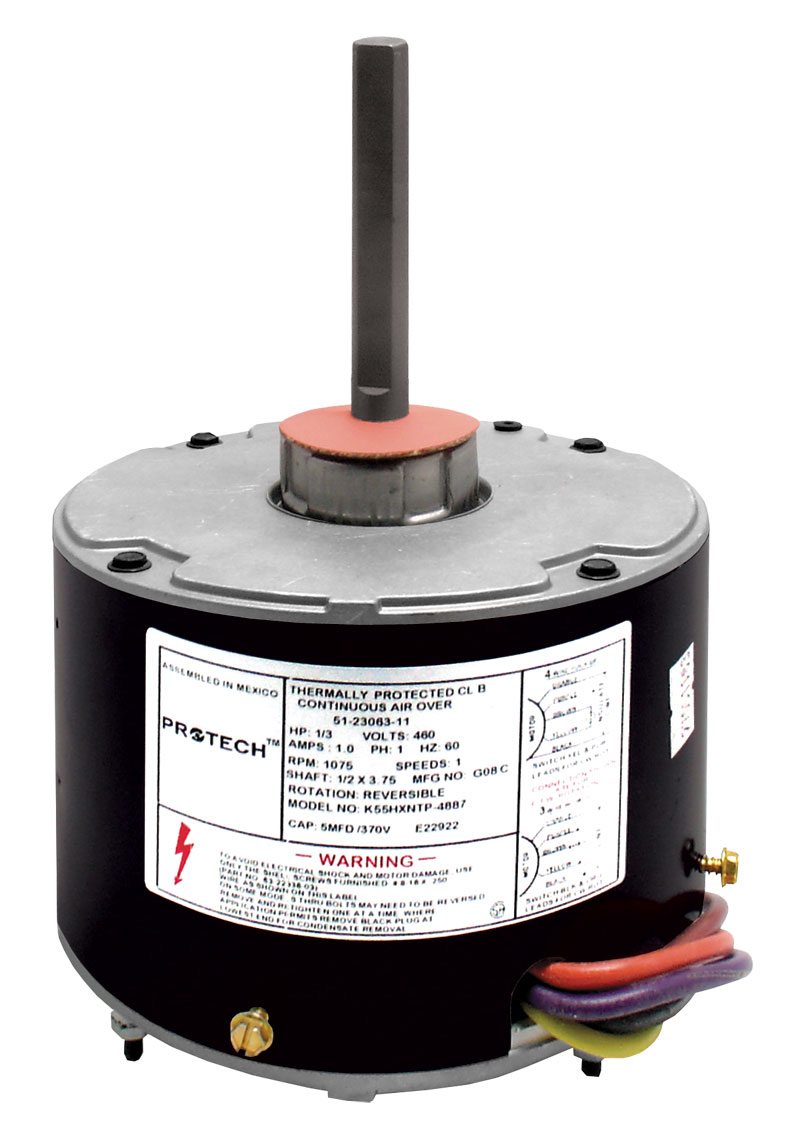

US Motors® Condenser Fan Motor, 460 VAC, 1.3 A, 1/3 hp, 1075 rpm, 1 ph Phase, 60 Hz, Totally Enclosed Air Over Motor Enclosure, 48Y Frame, 1/2 in Dia x 6 in L Shaft, Reversible Rotation, 1 Speed, Ball Bearing, Stud Mounting, F Insulation Class, Continuous, 1 Service Factor, 6 Poles, 70 deg C, 5.6 in Dia x 11.9 in L
| Mounting Type | Stud |
| Voltage Rating | 460 VAC |
| Amperage Rating | 1.3 A |
| HP Rating | 1/3 hp |
| Speed Rating | 1075 rpm |
| Phase | 1 ph |
| Frequency Rating | 60 Hz |
| Motor Enclosure Type | Totally Enclosed Air Over |
| Frame Size | 48Y |
| Service Factor | 1 |
| Insulation Class | F |
| Duty Type | Continuous |
| Number of Poles | 6 |
| Application | For residential and commercial condensing units |
| Bearing Type | Ball |
| Dimensions | 5.6 in Dia x 11.9 in L |
| Number of Speeds | 1 |
| Rotation Type | Reversible |
| Shaft Size | 1/2 in Dia x 6 in L |
| Temperature Rating | 70 deg C |
- Automatic reset thermal overload protection
- Bearings have all angle thrust system
- Designed for 370 VAC capacitor
- Extreme high-ambient design
- Extended studs
- Hubless lead end
- Drain holes both ends
- Capacitor 7.5 uF
