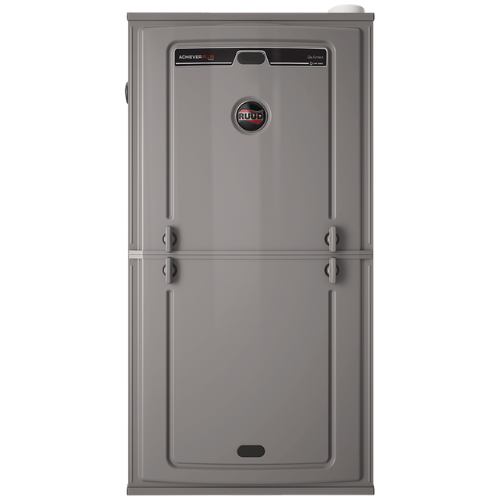

RUUD® Endeavor™ Line Standard Gas Furnace, Series: R962V Series, Model: Classic Plus®, 56000 Btu/hr Input BTU Rating, 55000 Btu/hr Output BTU Rating, 115 V, 8 A, 1250 cfm Rating, 1/2 hp Rating, 96 % AFUE, 1 ph, 60 Hz, 2 Stage, 4-Way Multi-Position Configuration, NPT Connection Type, 1/2 in Connection, 8 mm W x 11 mm D Blower Size, 34 in H x 17-1/2 in W Cabinet Dimensions, ECM Motor, 15 A Fuse, 3 ton Tonnage, PlusOne® Ignition, Direct Spark Ignition, 0.9 kPa, 30 to 60 deg F Rise

Note: TACL and EPA license required to buy refrigerant and refrigerant bearing equipment, RUUD® not available in Houston locations

• PlusOne™ energy efficiency: ENERGY STAR® certified, featuring 95% AFUE across all model sizes
• PlusOne™ diagnostics: with the Ruud® contractor and EcoNet® Apps, built-in EcoNet® and Bluetooth technology makes monitoring, trouble shooting and repairing the product easier than ever before
• Dip switch-free installation commissioning via Bluetooth technology: seamless final install step without DIP switch configuration using the Ruud® contractor app
• PlusOne™ ignition system - proven direct spark ignition (DSI) for reliability and longevity
• PlusOne™ water management system: exclusive patented block drain sensor that automatically shuts off the furnace when the drain is blocked and alerts the contractor via diagnostic code
• Two-stages heating: furnace operation mainly stays at low capacity around 60 to 65%, but will switch to high capacity to deliver stable heat distribution
• Constant cfm motor: truly variable speed technology allows for ultimate humidity control, quieter sound levels and year round energy savings
• Quieter operation: a fully insulated blower cabinet, solid bottom and truly variable speed airflow technology makes this furnace one-of the quieter options available
• EcoNet® enabled furnace: the latest in sensor technology and the EcoNet® monitoring system provides a new level of protection, control and energy saving
• Allows on the-go control and receipt of system alerts by the homeowner via the EcoNet® smart thermostat and EcoNet® App

• RCFY Coil Instructions https://www.insco.com//ASSETS/DOCUMENTS/ITEMS/EN/RCFY_Install.pdf
• Specification Sheet https://assets.unilogcorp.com/297/ITEM/DOC/Insco_Ruud_R962V.pdf
