Note: Not available in Houston locations.

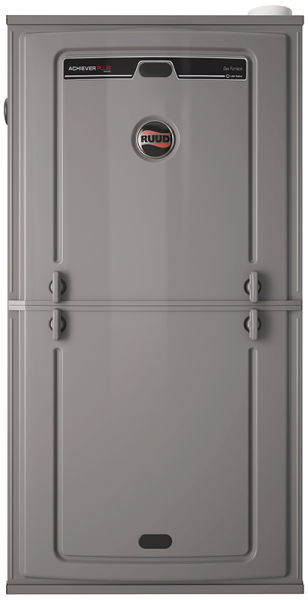

RUUD® Endeavor™ Line Standard Gas Furnace, Series: R962V Series, Model: Classic Plus®, 42000 Btu/hr Input BTU Rating, 41000 Btu/hr Output BTU Rating, 115 V, 8 A, 1150 cfm Rating, 1/2 hp Rating, 96 % AFUE, 1 ph, 60 Hz, 2 Stage, 4-Way Multi-Position Configuration, NPT Connection Type, 1/2 in Connection, 7 mm W x 11 mm D Blower Size, 34 in H x 17-1/2 in W Cabinet Dimensions, ECM Motor, 15 A Fuse, 3 ton Tonnage, PlusOne® Ignition, Direct Spark Ignition, 0.9 kPa, 20 to 50 deg F Rise
| Series | R962V |
- PlusOne™ energy efficiency: ENERGY STAR® certified, featuring 95% AFUE across all model sizes
- PlusOne™ diagnostics: with the Rheem® contractor and EcoNet® Apps, built-in EcoNet® and Bluetooth technology makes monitoring, trouble shooting and repairing the product easier than ever before
- Dip switch-free installation commissioning via Bluetooth technology: seamless final install step without DIP switch configuration using the Rheem® contractor app
- PlusOne™ ignition system - proven direct spark ignition (DSI) for reliability and longevity
- PlusOne™ water management system: exclusive patented block drain sensor that automatically shuts off the furnace when the drain is blocked and alerts the contractor via diagnostic code
- Two-stages heating: furnace operation mainly stays at low capacity around 60 to 65%, but will switch to high capacity to deliver stable heat distribution
- Constant cfm motor: truly variable speed technology allows for ultimate humidity control, quieter sound levels and year round energy savings
- Quieter operation: a fully insulated blower cabinet, solid bottom and truly variable speed airflow technology makes this furnace one-of the quieter options available
- EcoNet® enabled furnace: the latest in sensor technology and the EcoNet® monitoring system provides a new level of protection, control and energy saving
- Allows on the-go control and receipt of system alerts by the homeowner via the EcoNet® smart thermostat and EcoNet® App
