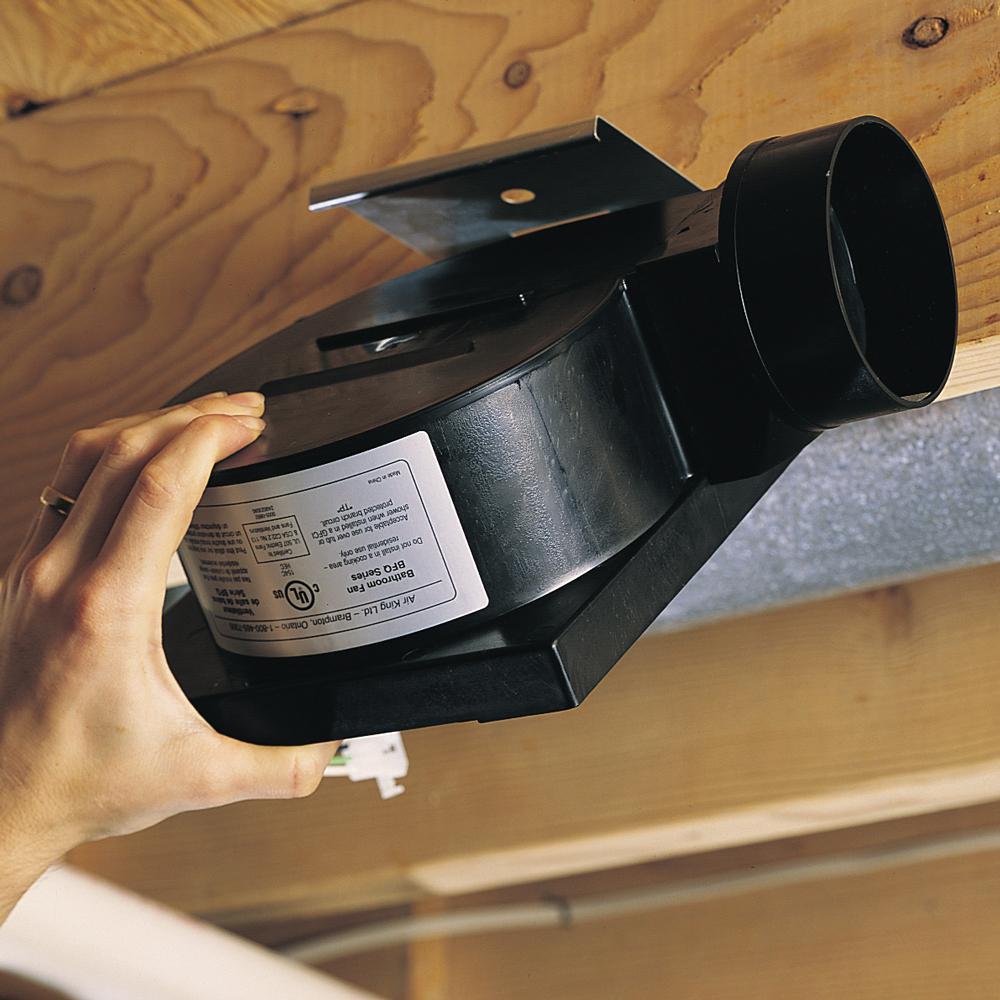

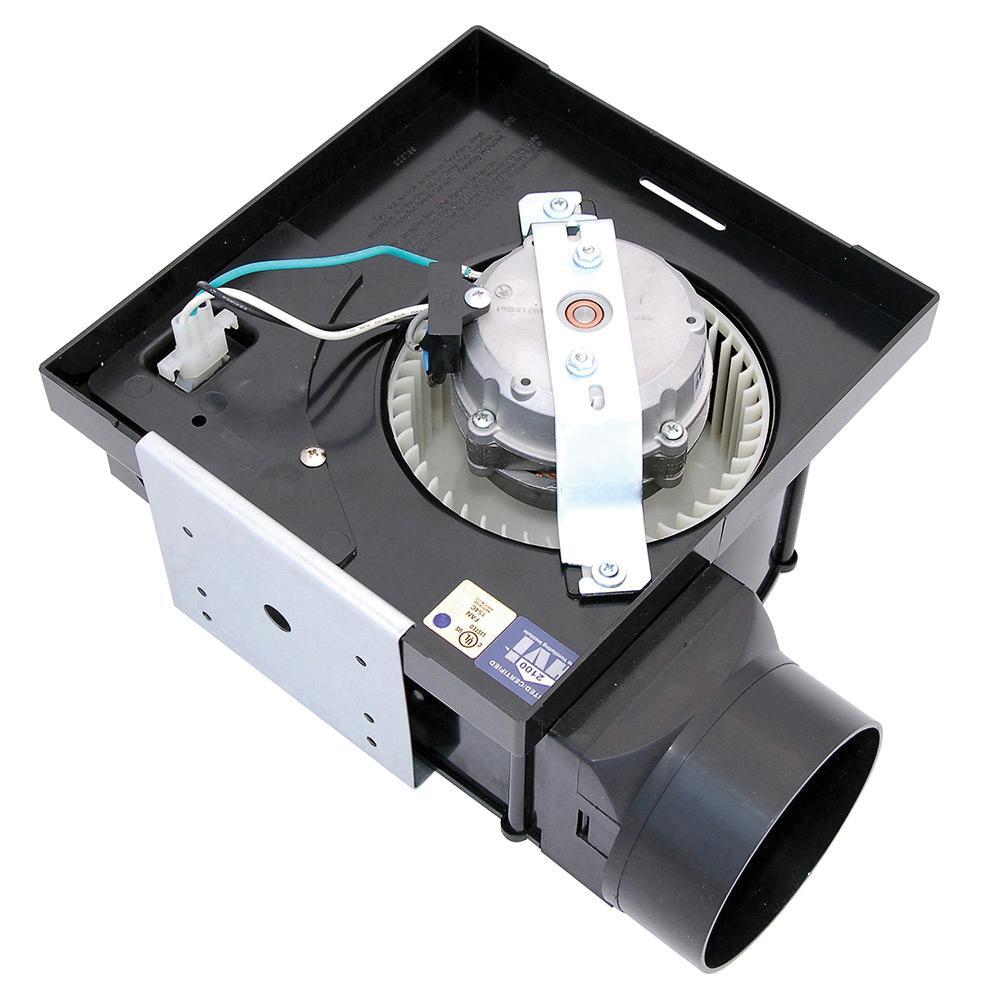

The Air Kings BFQ Series snap-in installation exhaust fans provide effective and affordable ventilation for your bathroom, laundry room or other areas of the home needing ventilation. The motor is permanently lubricated, suitable for continuous operation and requires little to no maintenance. The snap-in installation exhaust fans easily install using the included snap-in mounting system and the 4 in round plastic duct connector with damper protects against backdrafts. The white, low profile plastic grill is unobtrusive and complements almost all decors. The snap-in installation exhaust fans are UL listed for installation over a tub or shower on a GFCI circuit and are HVI certified.
Air King® Exhaust Fan, Series BFQ Series, 120 V, 0.8 A, 60 Hz, 97 W Power, 4 -Pole, Snap-In Bracket Mount, Grille Size: 10-3/4 in H x 11-5/8 in W, 4 in, Permanent Split Capacitor Motor, 120 cfm CFM, 120 to 150 sq-ft Coverage Area, Noise Rating: 5 sones, 2625 rpm Speed, 11-5/8 in Overall Length, 10-3/4 in W Overall, 4-3/4 in Overall Height, ABS Housing, Plastic Collar/Damper, High Sound Level
| Series | BFQ Series |
| Voltage Rating | 120 V |
| Amperage Rating | 0.8 A |
| Frequency Rating | 60 Hz |
| Number of Poles | 4 |
| Power Rating | 97 W |
| Mounting Type | Snap-In Bracket |
| Duct Size | 4 in |
| Motor Type | Permanent Split Capacitor |
| Grille Size | 10-3/4 in H x 11-5/8 in W |
| CFM Rating | 120 cfm |
| Coverage Area | 120 to 150 sq-ft |
| Additional Information | Plastic Collar/Damper, High Sound Level |
| Overall Length | 11-5/8 in |
| Overall Width | 10-3/4 in |
| Overall Height | 4-3/4 in |
| Housing Material | ABS |
| Noise Rating | 5 sones |
| Speed Rating | 2625 rpm |
- Able to be installed into 2 x 6 in constructions

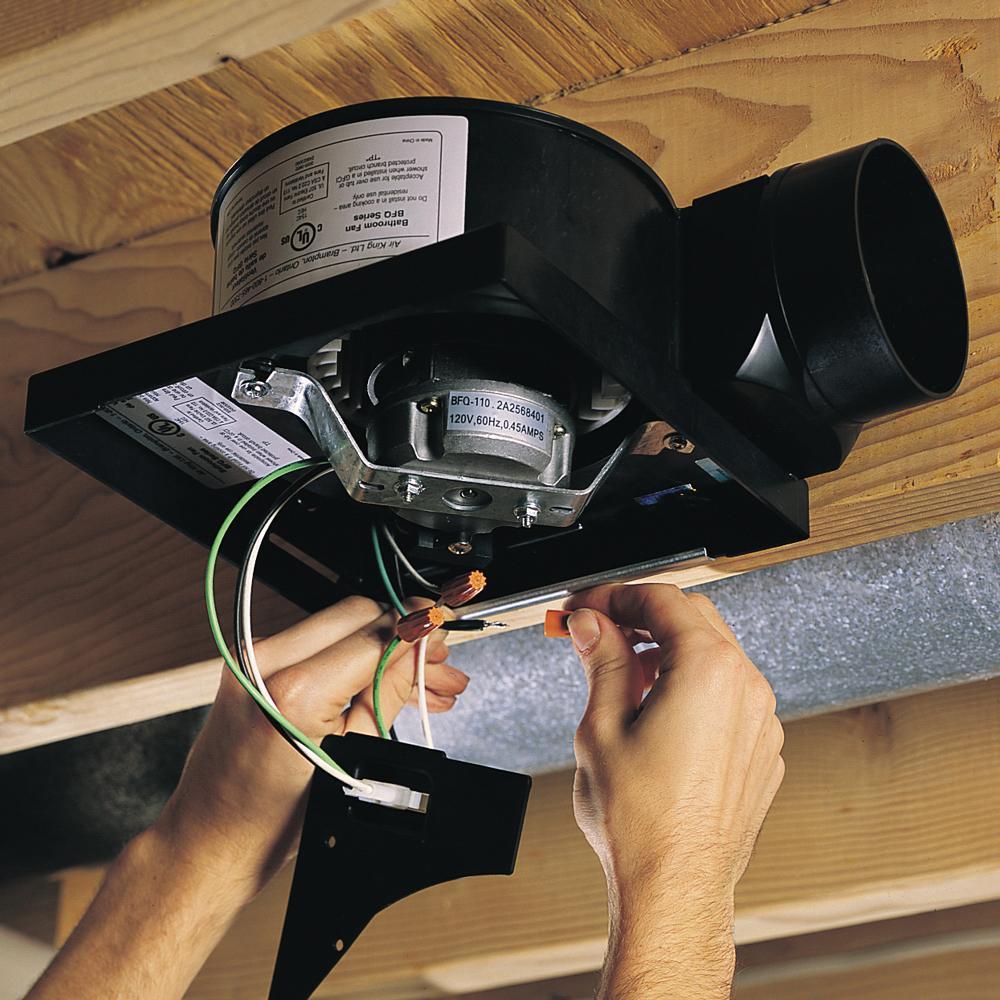

- Wire nuts and Romex connector included with unit
- Plastic housing will not rust or corrode over time
