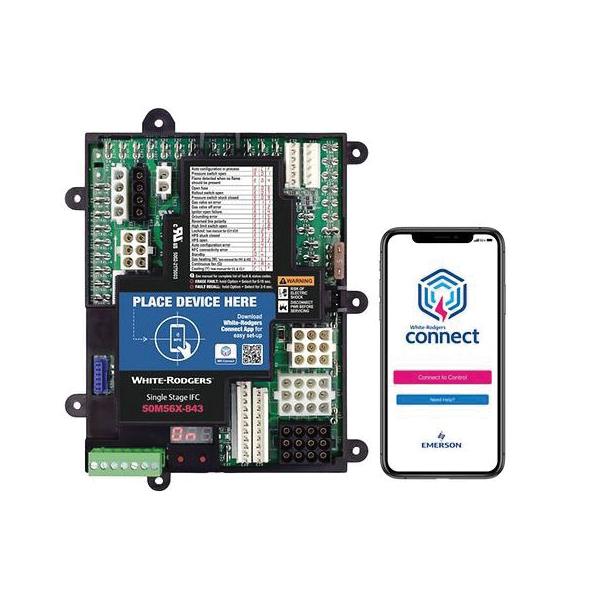

Universal single-stage HSI integrated furnace control for PSC and ECMx blower motors. Includes a universal 120 V nitride ignitor and utilizes the WHITE-RODGERS™ connect app for simple configuration and diagnostics.
WHITE-RODGERS™ Universal Integrated Hot Surface Ignition Control Kit, 25 V, 0.8 A, 60 Hz, 14.5 A Full Load, 25 A Locked Rotor Contact Rating, -40 to 175 deg F, Liquid Petroleum, LP Gas Air Mixtures Gas, For Use With: PSC and ECMx Blower Motors, Additional Information: 8-1/4 in L x 6-1/2 in W x 1-1/2 in D Dimension, 5 to 93% Relative Humidity, 1-Stage
| Contact Rating | 14.5 A Full Load, 25 A Locked Rotor |
| Gas Type | Liquid Petroleum, LP Gas Air Mixtures |
| Suitable For Use With | PSC and ECMx Blower Motors |
| Temperature Rating | -40 to 175 deg F |
| Voltage Rating | 25 V |
| Amperage Rating | 0.8 A |
| Frequency Rating | 60 Hz |
- Reduce inventory by replacing over 550 part numbers
- Quick configuration (without power) and diagnostics with the WHITE-RODGERS™ connect app
- OEM harness detection, no additional harnesses required
- Seven segment LED display provides unlimited configuration options
- Rollout accessory is not required
- Thermostat connector block for simple wiring
