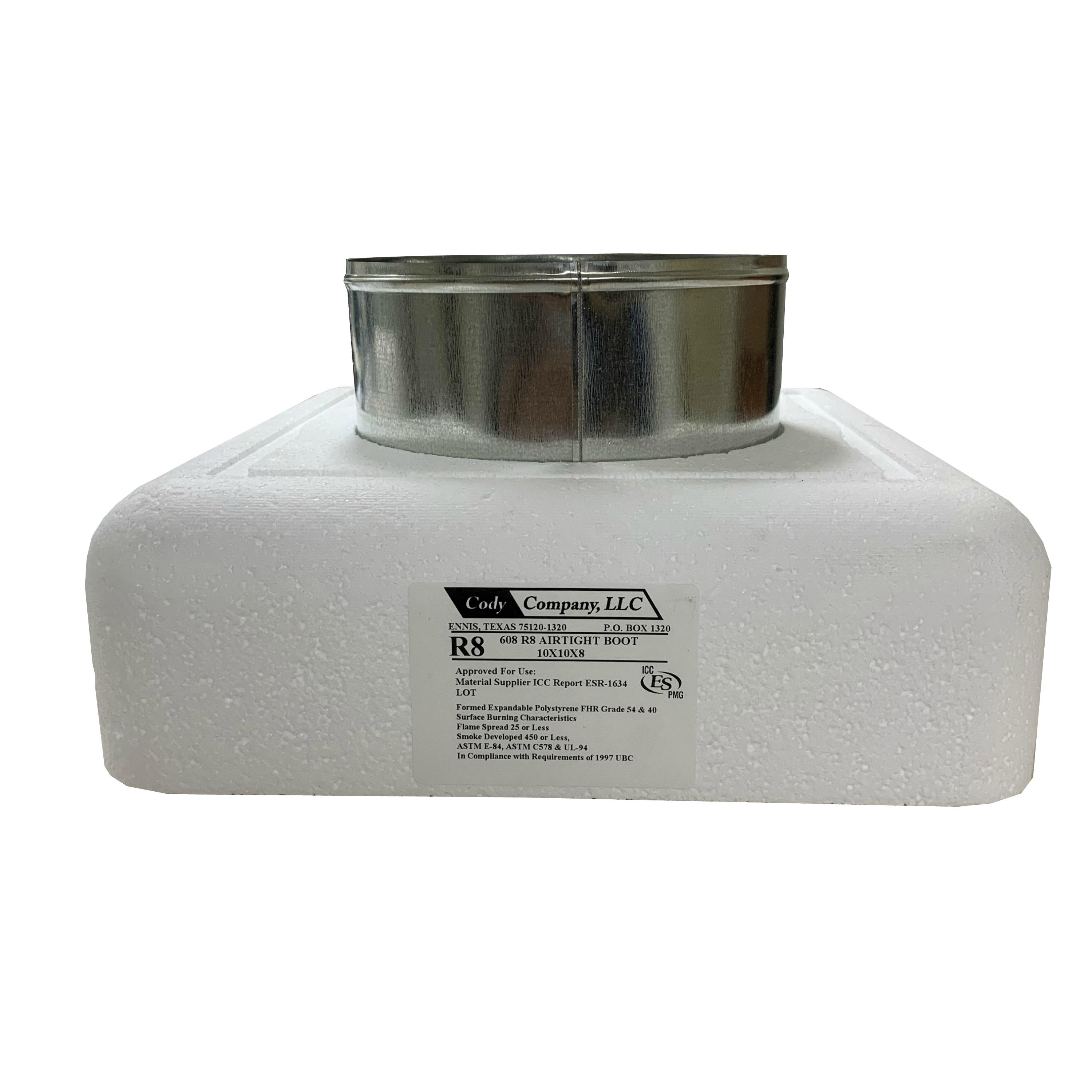

Cody Airtight Register Box, Series 608 Series, 6 in Collar, 10 in Length, 8 in Width, 8-1/4 in Height, 30 ga, Steel, Galvanized, ASTM C578, E84, R-Value: R8
| Gauge | 30 ga |
| Material Standard | ASTM C578, E84 |
| R-Value | R8 |
| Series | 608 Series |
| Size | 6 in Collar |
| Length | 10 in |
| Width | 8 in |
| Height | 8-1/4 in |
| Material | Steel |
| Finish | Galvanized |
- Mechanically folded technology provides an airtight boot no additional taping or sealing required
- Insulator top Expanded Polystyrene (EPS) beads
- Beaded collar/neck is stitch welded and elongated for easy attachment with either flexible duct, galvanized hard pipe or elbow
- Flanges (1 in W) with punch holes attached on all four sides for easier installation of optional boot rails as well as to attach Grille
- 1/2 in drop at Grille opening for sheet rock frame
- Reduces installation time and labor costs
- Closed cell vapor barrier
- Field recognizable green color
Specification Sheet
