RESCUE® permanent replacement condenser fan and direct drive blower motors ensure contractors always have the right motor on hand to get the job done. RESCUE motors are easily installed and replace a variety of different horsepower applications eliminating the need for temporary substitutions, extra drive time back to the wholesaler and emergency openings in the evening.
US Motors® Blower Motor, 1/3 to 1/2 HP, 115/208 to 230 V, 6.4 A, 50/60 Hz, 1 ph, 1075 RPM, Open Air Over, 48 Frame, 1/2 in Dia x 5 in L Shaft, Belly Band Mount, 2.063 in Overall Height, For Use With: Furnaces, Air Handlers
| Amperage Rating | 6.4 A |
| Enclosure Type | Open Air Over |
| Mounting Type | Belly Band |
| Overall Height | 2.063 in |
| Shaft Size | 1/2 in Dia x 5 in L |
| HP Rating | 1/3 to 1/2 hp |
| Voltage Rating | 115/208 to 230 V |
| Frequency Rating | 50/60 Hz |
| Phase | 1 ph |
| Frame | 48 |
| Speed Rating | 1075 rpm |
| Suitable For Use With | Furnaces, Air Handlers |
- RESCUE® EZ16™ ECM
- Direct Drive Blower
- 16-Pin Replacement for ECM 2.0 2.3 EON
- Field Tunable EZ Interface
- Adjustable airflow at point of installation

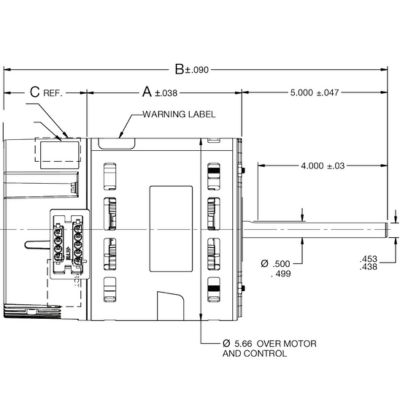

Dimension Print
EZ16 Installation (Video)
