US Motors® 5430
Send Print
  1. pin-int

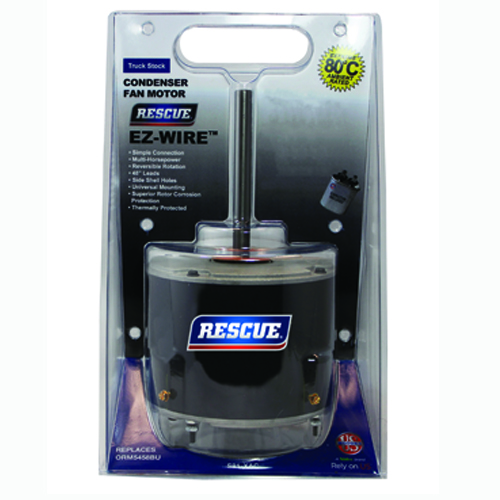

US Motors Rescue, EZ-Wire Permanent Split Capacitor Condenser Fan Motor, 208/230 volt, 2.2 amp, 1/3 - 1/6 hp, 1075 rpm, 1 PH Phase, 1 Speed

  • Brand Name: US Motors®
  • IPN: 5430-US
  • MPN: 5430
  • Login for Availability $locale.get('product.label.hazmat')

US Motors® Condenser Fan Motor, 208/230 V, 2.2 A, 1/3 to 1/6 hp, 1075 rpm, 1 ph Phase, 60 Hz, Totally Enclosed Air Over Motor Enclosure, 48Y Frame, 1/2 in Dia x 5 in L Shaft, Counter-Clockwise Lead End, Reversible Rotation, 1 Speed, Ball Bearing, All Angle Mounting, B Insulation Class, 66.46 % Efficiency, 1 Service Factor, 6 Poles, 80 deg C, 5.6 in Dia

Bearing Type       Ball
Dimensions       5.6 in Dia
Efficiency       66.46 %
Mounting Type       All Angle
Number of Poles       6
Number of Speeds       1
Rotation Type       Counter-Clockwise Lead End, Reversible
Service Factor       1
Shaft Size       1/2 in Dia x 5 in L
Temperature Rating       80 deg C
Voltage Rating       208/230 V
Amperage Rating       2.2 A
HP Rating       1/3 to 1/6 hp
Speed Rating       1075 rpm
Phase       1 ph
Frequency Rating       60 Hz
Motor Enclosure Type       Totally Enclosed Air Over
Frame Size       48Y
Insulation Class       B
  • Capacitor 7.5 uF at 440 VAC
  • Ball bearings - durability for high temperature applications for longer life than traditional sleeve bearings
  • 48 in lead length - easier wiring into today's larger condensing units
  • Special rotor corrosion protection designed for longer life and sure start ups season after season
  • Reversible easy to change quick-connect terminals for application flexibility
