Our popular supply and return products for T-Bar ceilings are an innovative response to the challenge of creating a better indoor environment. T-Bar products combine clean appearance with installation ease, and include critical design details to ensure consistent performance. Glass fiber insulation minimizes condensation, and the aluminum foil vapor barrier protects the insulation from moisture, if condensation occurs. Patented adjustable deflectors permit a variety of directional patterns and minimizes static pressure loss. A unique modular collar system provides a standard collar and damper unit, which can be shared between a number of different T-Bar products.

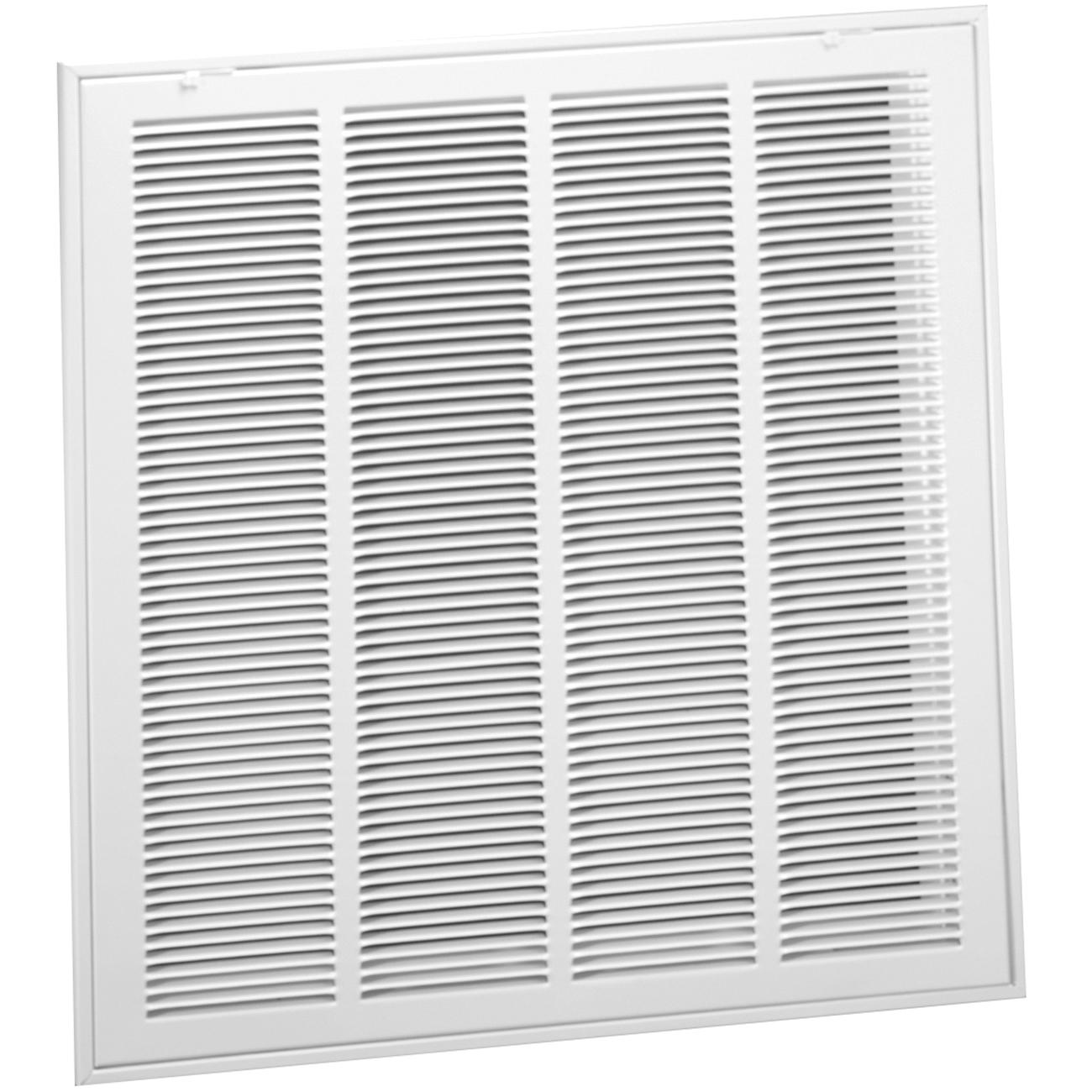

Hart & Cooley® Lanced Return Air Filter Grille, 659TI Series, 20 x 20 in, 1/3 in Grille Spacing, 23-3/4 in Length, 23-3/4 in Width, 23-3/4 in Height, Steel, Finish: Enamel, Bright White, Domestic/Import: Import, Additional Information: 4-1/4 in THK Dimensions, 24 x 24 in Opening Size
| Height | 23-3/4 in |
| Length | 4-1/4 in |
| Series | 659TI Series |
| Width | 23-3/4 in |
| Size | 20 x 20 in |
| Material | Steel |
| Color | Bright White Enamel |
- Lanced face design with 1/3 in blade spacing
- Flush, removable face with concealed latches and hinges can be installed in any direction
- Molded fiberglass back R4.2, R6
- Accepts 6 to 14 in unique tab collar (6400 Series) or 6 to 16 in unique snap-in collar (5400 and 5400PP Series, also accepts standard spin-in collar)
- Frame includes four seismic safety connections
- Uses standard 1 in disposable filters (not furnished)
