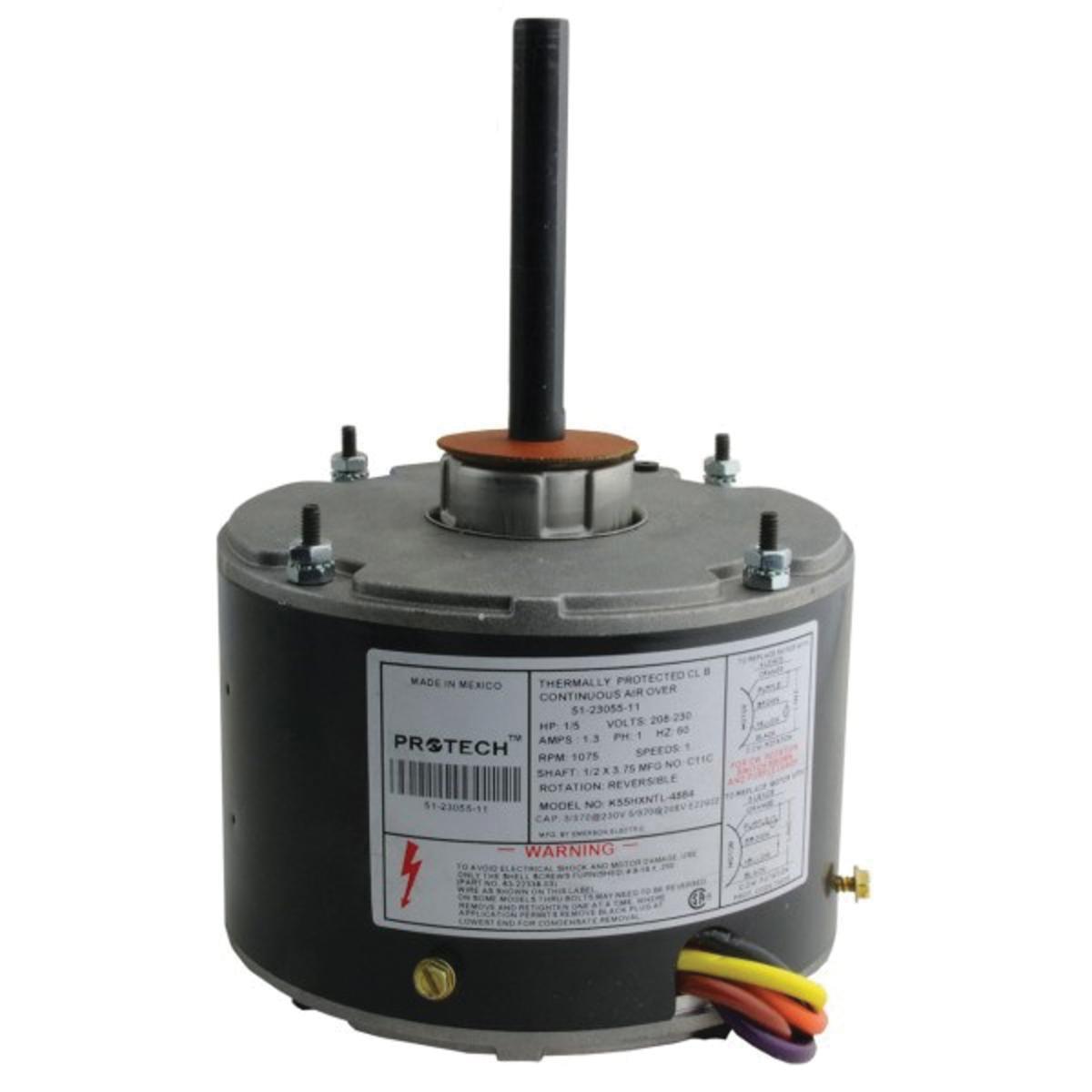

RUUD® Condenser Fan Motor, 208 to 230 VAC, 1.3 A, 1/5 hp, 1075 rpm, 1 ph, 60 Hz, 48 Frame, 1/2 in Dia x 4-1/4 in L Shaft, Reversible Rotation, 1 Speed, Sleeve Bearing, Shell-Band, Through-Bolt Mounting, Direct Drive, 5-5/8 in Dia x 3-9/16 in L
| Bearing Type | Sleeve |
| Dimensions | 5-5/8 in Dia x 3-9/16 in L |
| Drive Type | Direct |
| Mounting Type | Shell-Band, Through-Bolt |
| Number of Speeds | 1 |
| Rotation Type | Reversible |
| Shaft Size | 1/2 in Dia x 4-1/4 in L |
| Voltage Rating | 208 to 230 VAC |
| Amperage Rating | 1.3 A |
| HP Rating | 1/5 hp |
| Speed Rating | 1075 rpm |
| Phase | 1 ph |
| Frequency Rating | 60 Hz |
| Frame Size | 48 |
- Capacitor 3 uF at 370 VAC, 5 uF at 370 VAC
Instruction/Installation Manual
