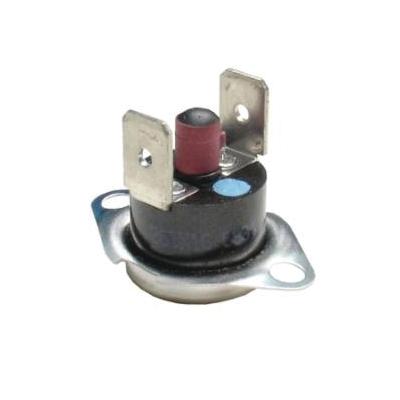

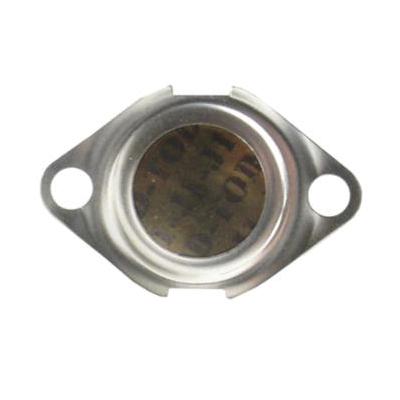

RUUD® Reset Limit Switch, 120/230 VAC, 15/10 A, SPST Switching Action, 1NC, 60 Hz, 1 Pole, 1 PH, 300 deg F Opening Temperature, -31 deg F Closing Temperature, 300 deg F, Quik-Connect Connection Type, 0.145 in Hole, Flanged Airstream Mount, 5.5 in L x 4 in W x 0.8 in H, Blue, For Use With: R95TC, RGEA15(AT), RGEA15(AV), RGFD, RGGD, RGGE, RGJD, RGRA, RGRB, RGRJ, RGRK, RGSA, RGTA, RGTJ, RGTK and RKKA Gas Furnaces, Additional Information: Manual Reset
| Closing Temperature | -31 deg F |
| Color | Blue |
| Connection Type | Quik-Connect |
| Contact Configuration | 1NC |
| Dimensions | 1.18 in L x 0.81 in W |
| Frequency Rating | 60 Hz |
| Hole Size | 0.145 in |
| Mounting Type | Flanged Airstream |
| Number of Poles | 1 |
| Opening Temperature | 300 deg F |
| Phase | 1 PH |
| Temperature Rating | 300 deg F |
| Voltage Rating | 120/230 VAC |
| Amperage Rating | 15/10 A |
| Switching Action | SPST |
| Suitable For Use With | R95TC, RGEA15(AT), RGEA15(AV), RGFD, RGGD, RGGE, RGJD, RGRA, RGRB, RGRJ, RGRK, RGSA, RGTA, RGTJ, RGTK and RKKA Gas Furnaces |
