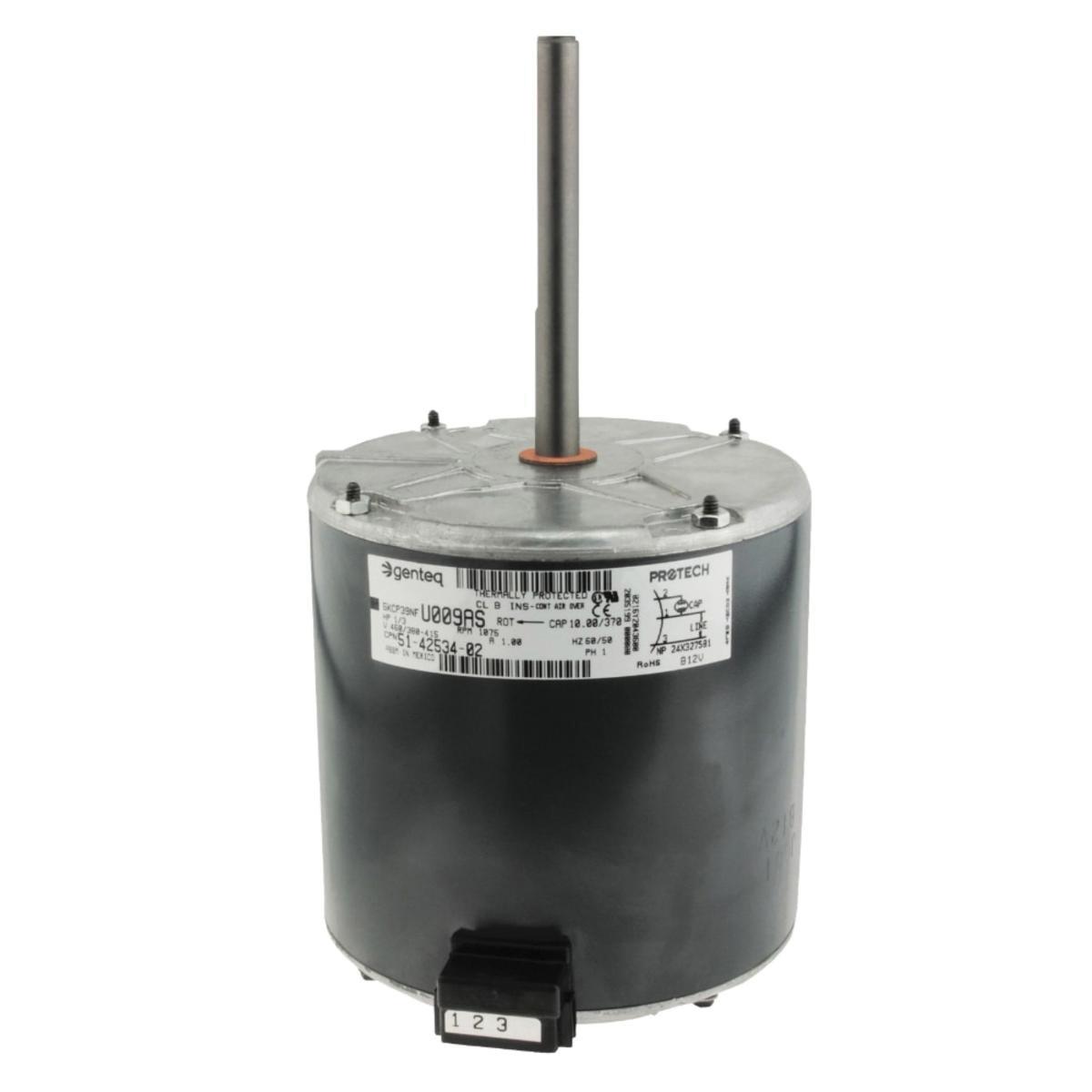

RUUD® Condenser Motor, 380 to 415/460 VAC, 1 A, 1/3 hp, 1075 rpm, 1 ph, 50 Hz, 60 Hz, 48 Frame, 1/2 in Dia x 4-1/2 in L Shaft, Counter-Clockwise Rotation, 1 Speed, Direct Drive Blower, Ball Bearing, Shell Band Mounting, 5-5/8 in Dia x 9-15/16 in L
| Bearing Type | Ball |
| Blower Type | Direct Drive |
| Dimensions | 5-5/8 in Dia x 9-15/16 in L |
| Mounting Type | Shell Band |
| Number of Speeds | 1 |
| Rotation Type | Counter-Clockwise |
| Shaft Size | 1/2 in Dia x 4-1/2 in L |
| Voltage Rating | 380 to 415/460 VAC |
| Amperage Rating | 1 A |
| HP Rating | 1/3 hp |
| Speed Rating | 1075 rpm |
| Phase | 1 ph |
| Frequency Rating | 50 Hz, 60 Hz |
| Frame Size | 48 |
- These motors are OEM replacements for Rheem®, RUUD® and WeatherKing models
- Suitable for aftermarket retrofit in many other applications
