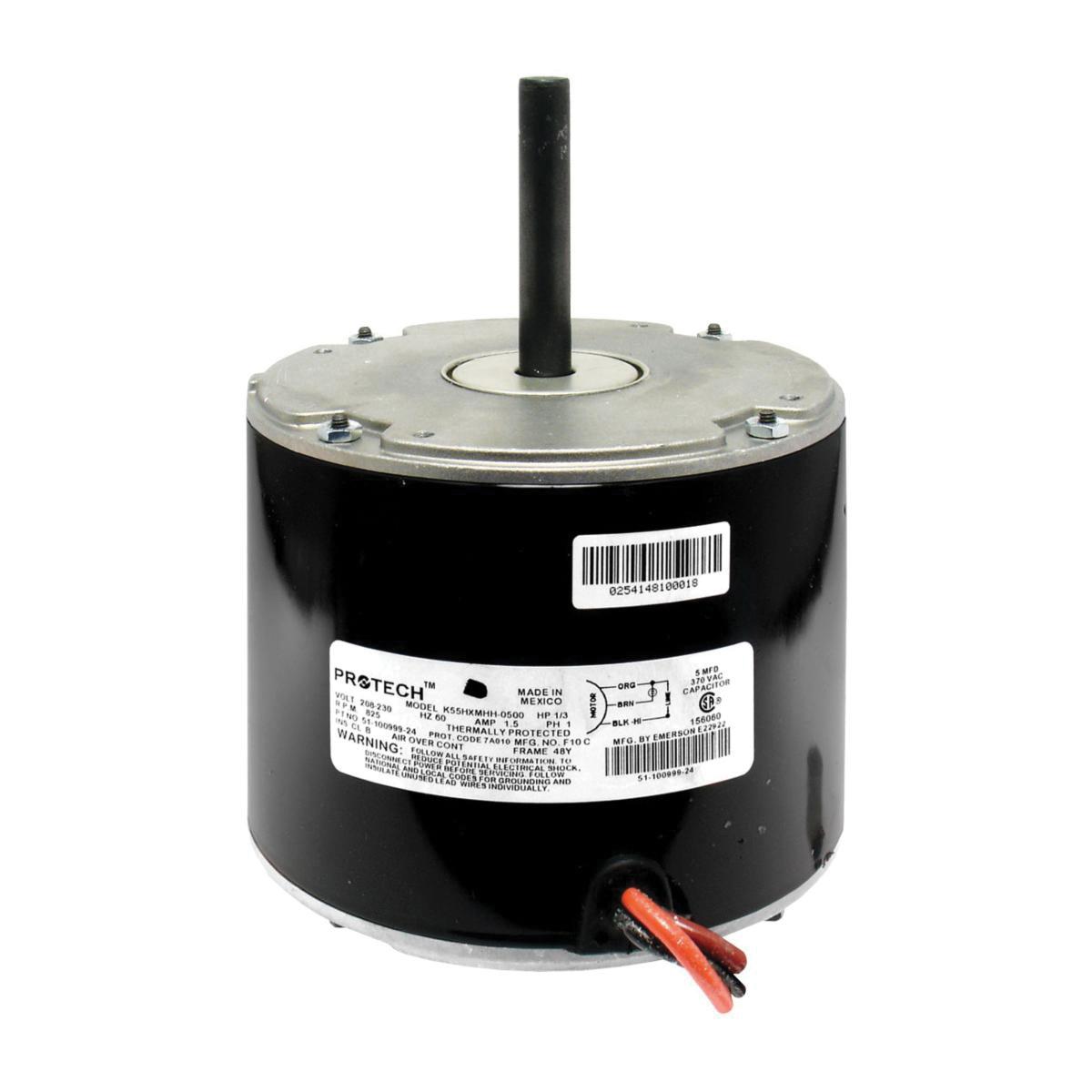

RUUD® Condenser Motor, 208 to 230 VAC, 2 A, 1/3 hp, 1075 rpm, 1 ph, 60 Hz, 48 Frame, 1/2 in Dia x 3-11/16 in L Shaft, Counter-Clockwise Rotation, 1 Speed, Direct Drive Blower, Sleeve Bearing, End-Boss, Shell Band Mounting, 5-5/8 in Dia x 9-1/8 in L
| Bearing Type | Sleeve |
| Blower Type | Direct Drive |
| Dimensions | 5-5/8 in Dia x 9-1/8 in L |
| Mounting Type | End-Boss, Shell Band |
| Number of Speeds | 1 |
| Rotation Type | Counter-Clockwise |
| Shaft Size | 1/2 in Dia x 3-11/16 in L |
| Voltage Rating | 208 to 230 VAC |
| Amperage Rating | 2 A |
| HP Rating | 1/3 hp |
| Speed Rating | 1075 rpm |
| Phase | 1 ph |
| Frequency Rating | 60 Hz |
| Frame Size | 48 |
- These motors are OEM replacements for Rheem®, RUUD® and WeatherKing models
- Suitable for aftermarket retrofit in many other applications
