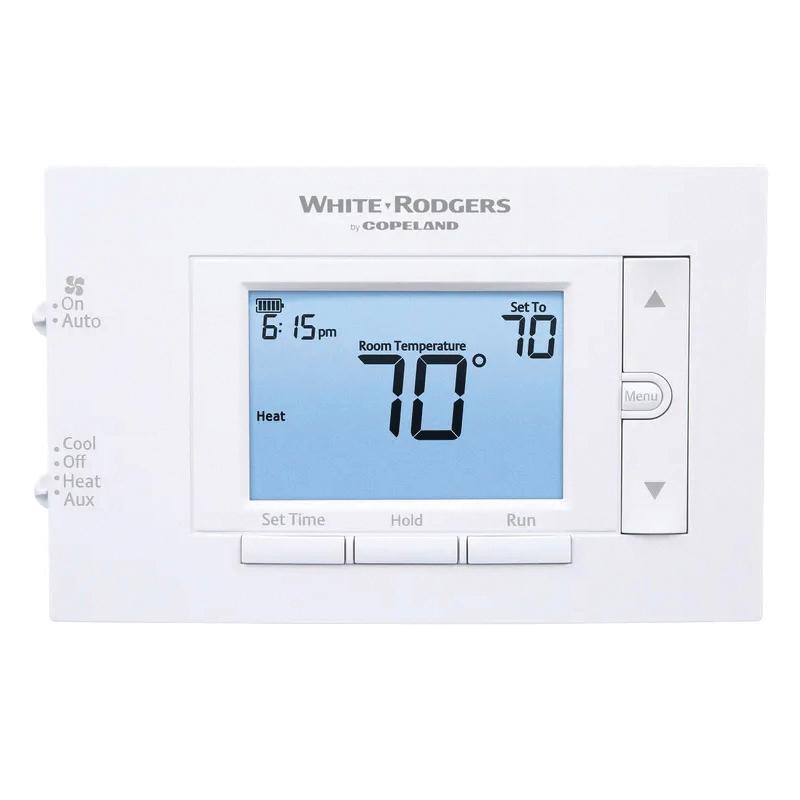

WHITE-RODGERS™ 1F83H-21PR
Send Print
  1. pin-int

White Rodgers Digital Thermostat, 5-1-1, 7 days Program, 2 Heat/1 Cool Heat Pump Stage, 45 - 99 deg F Setting, mV - 30 VAC Battery, 20 - 30 VAC Hardwire, 1 - 1.5 amp, Battery/Hardwired

  • Brand Name: WHITE-RODGERS™
  • IPN: 1F83H-21PR-WR
  • MPN: 1F83H-21PR
  • UPC: 786710551666
  • Login for Availability $locale.get('product.label.hazmat')

WHITE-RODGERS™ Thermostat, Series: 80, mV - 30 VAC Battery, 20 - 30 VAC Hardwire, 1 - 1.5 A, 50/60 Hz, 5-1-1, 7 day Program Programmability, Battery/Hardwired, 2 Heat/1 Cool Heat Pump Stages, HEAT-OFF-COOL-AUXILIARY/EMERGENCY (System), AUTO-ON (FAN) Switch Position, 4.5 sq-in Display, 0.5 deg F at 6 deg F/hr Fast, 0.75 deg F at 6 deg F/hr Medium, 1.9 deg F at 6 deg F/hr Slow Heating, 0.9 deg F at 6 deg F/hr Fast, 1.2 deg F at 6 deg F/hr Medium, 1.7 deg F at 6 deg F/hr Slow Cooling, 0.9 deg F at 6 deg F/hr Fast, 1.2 deg F at 6 deg F/hr Medium, 1.7 deg F at 6 deg F/hr Slow Heating Pump (Heating and Cooling), 0.5 deg F at 6 deg F/hr Fast, 0.75 deg F at 6 deg F/hr Medium, 1.9 deg F at 6 deg F/hr Slow Heating Pump (Auxiliary) Differential Temperature, 45 - 99 deg F Temperature Settings, 32 - 105 deg F Ambient, 90% Non-Condensing Humidity Rating, +/-1 deg C Accuracy, Horizontal Mounting, R, C, W2, E, Y, O/B, G, L Terminal Designation, White, 6 in W x 3-3/4 in H x 1-1/8 in D

Accuracy       +/-1 deg C
Color       White
Differential Temperature       0.5 deg F at 6 deg F/hr Fast, 0.75 deg F at 6 deg F/hr Medium, 1.9 deg F at 6 deg F/hr Slow Heating, 0.9 deg F at 6 deg F/hr Fast, 1.2 deg F at 6 deg F/hr Medium, 1.7 deg F at 6 deg F/hr Slow Cooling, 0.9 deg F at 6 deg F/hr Fast, 1.2 deg F at 6 deg F/hr Medium, 1.7 deg F at 6 deg F/hr Slow Heating Pump (Heating and Cooling), 0.5 deg F at 6 deg F/hr Fast, 0.75 deg F at 6 deg F/hr Medium, 1.9 deg F at 6 deg F/hr Slow Heating Pump (Auxiliary)
Dimensions       6 in W x 3-3/4 in H x 1-1/8 in D
Display Type       4.5 sq-in
Frequency Rating       50/60 Hz
Humidity Rating       90% Non-Condensing
Mounting Type       Horizontal
Power Source       Battery/Hardwired
Series       80
Switch Position       HEAT-OFF-COOL-AUXILIARY/EMERGENCY (System), AUTO-ON (FAN)
Temperature Rating       32 - 105 deg F Ambient
Temperature Settings       45 - 99 deg F
Terminal Designation       R, C, W2, E, Y, O/B, G, L
Voltage Rating       mV - 30 VAC Battery, 20 - 30 VAC Hardwire
Amperage Rating       1 - 1.5 A
Programmability       5-1-1, 7 day Program
  • Large display - bright backlight, high contrast screen
  • Selectable programming - standard feature on all programmable models
  • Dual fuel control - no outdoor sensor required, standard on all staging models
  • Advanced features - auto-changeover on universal models, keypad lockout, temperature limits
  • Easy to install - built-in level indicator, simple set up menu, terminal block connections on subbase
  • 80 Series thermostats feature a slim profile and a modern design
  • 32 - 99 deg F display temperature range
  • 4,0 program periods per day
  • Continuous backlight with common wire
  • Permanent memory
  • Energy management recovery/early start program
  • Filter change reminder
  • pdf Catalog https://assets.unilogcorp.com/267/ITEM/DOC/White_Rodgers_1F85U_22PR_Catalog.pdf
  • pdf Instruction/Installation Manual https://assets.unilogcorp.com/267/ITEM/DOC/White_Rodgers_1F83H_21PR_B_5921_Manual.pdf
  • pdf Specification Sheet https://assets.unilogcorp.com/267/ITEM/DOC/White_Rodgers_1F83H_21PR_Specification_Sheet.pdf
