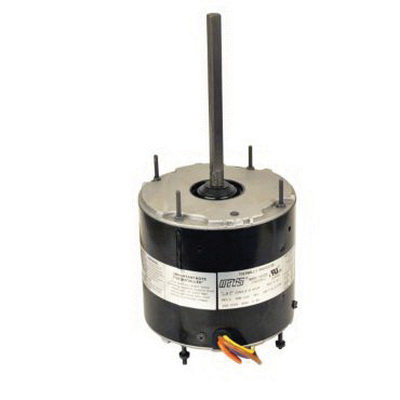

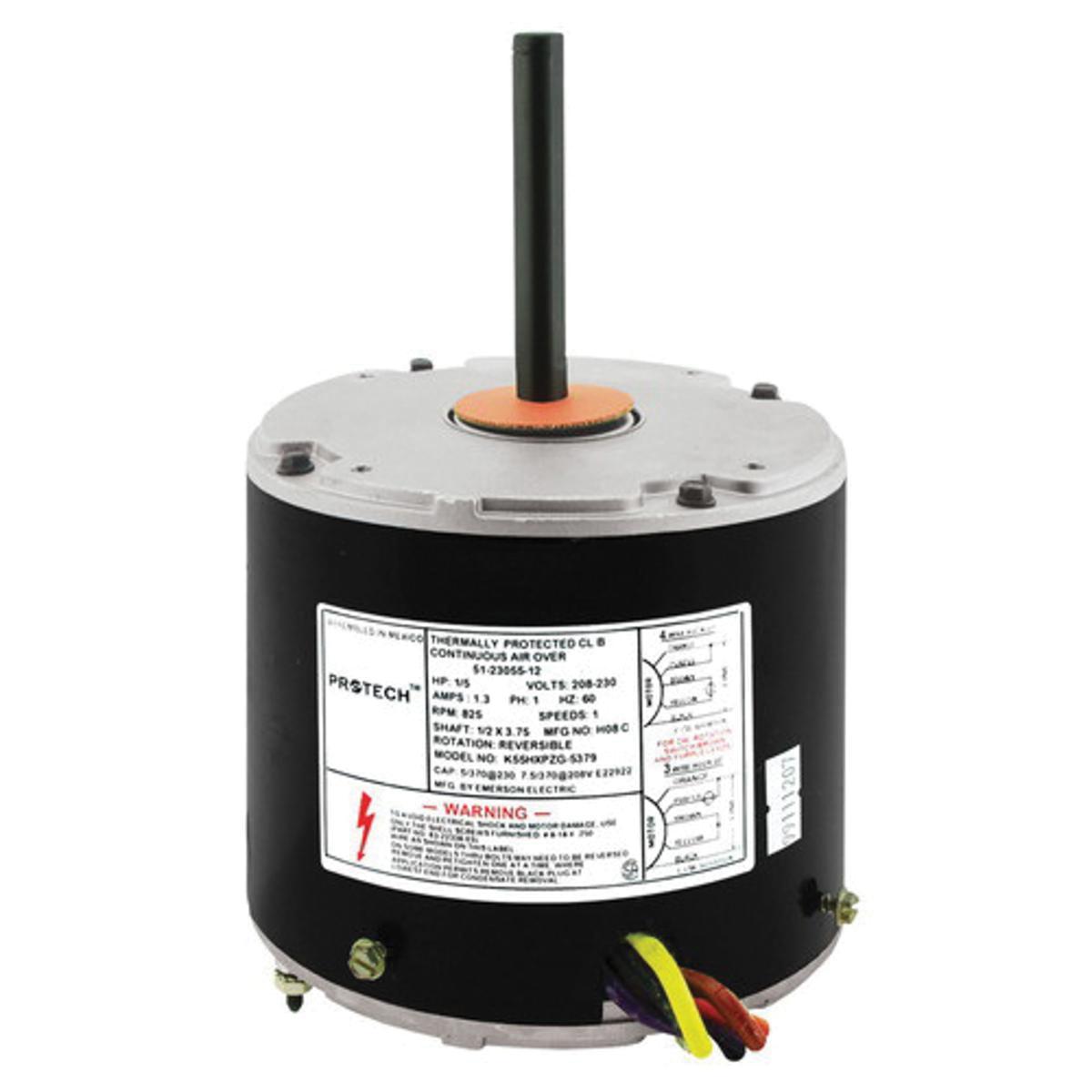

RUUD® Condenser Fan Motor, 208 to 230 V, 1.3 A Full Load, 1/5 hp, 825 rpm, 1 ph, 60 Hz, 48 Frame, 1/2 in Dia x 3-3/4 in L Shaft, REV Rotation, 1 Speed, Sleeve Bearing, Shell Band, End Boss Mounting, 5-5/8 in Dia x 8-1/8 in L, For Use With: RAMA-018JAZ, RAMA-024JAZ, RAMA-030, RAMA-036, 12PJA18, 12PJA24, 12PJA30 RRAD08E 48J, 48C Air Conditioners
| Bearing Type | Sleeve |
| Dimensions | 5-5/8 in Dia x 8-1/8 in L |
| Mounting Type | Shell Band, End Boss |
| Number of Speeds | 1 |
| Rotation Type | REV |
| Shaft Size | 1/2 in Dia x 3-3/4 in L |
| Suitable For Use With | RAMA-018JAZ, RAMA-024JAZ, RAMA-030, RAMA-036, 12PJA18, 12PJA24, 12PJA30 RRAD08E 48J, 48C Air Conditioners |
| Voltage Rating | 208 to 230 V |
| Amperage Rating | 1.3 A Full Load |
| HP Rating | 1/5 hp |
| Speed Rating | 825 rpm |
| Phase | 1 ph |
| Frequency Rating | 60 Hz |
| Frame Size | 48 |
