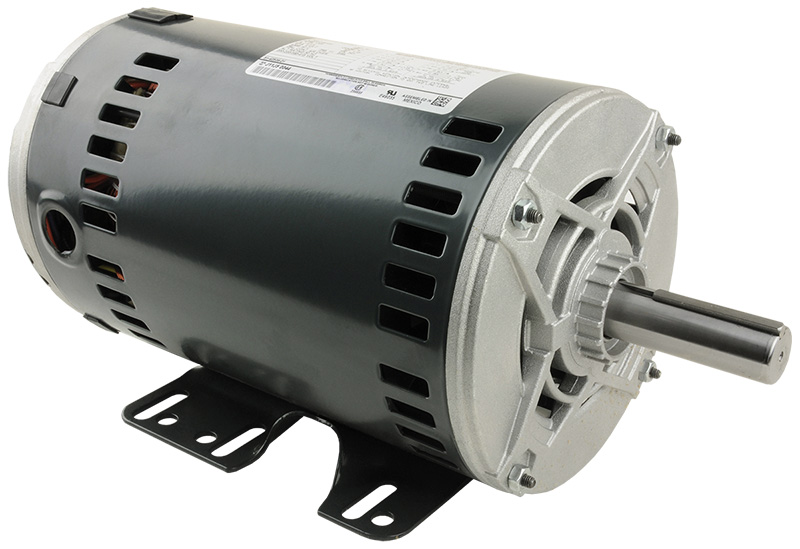

RUUD® Blower Motor, 208/220/230/380 to 415/460 VAC, 7.5 A at 230 VAC/3.4 A at 460 VAC Full Load/28 A at 460 VAC Rated Load, 2 hp, 1725 rpm, 3 ph, 50/60 Hz, 56Y Frame, 7/8 in Dia x 2-3/8 in L Shaft, REV Rotation, 1 Speed, Ball Bearing, Platform Mounting, Belt Drive, 6-7/16 in Dia x 13-9/16 in L, For Use With: RUUD® RJKB Package Heat Pump
| Bearing Type | Ball |
| Dimensions | 6-7/16 in Dia x 13-9/16 in L |
| Drive Type | Belt |
| Mounting Type | Platform |
| Number of Speeds | 1 |
| Rotation Type | REV |
| Shaft Size | 7/8 in Dia x 2-3/8 in L |
| Suitable For Use With | Rheem® RJKB Package Heat Pump |
| Voltage Rating | 208/220/230/380 to 415/460 VAC |
| Amperage Rating | 7.5 A at 230 VAC/3.4 A at 460 VAC Full Load/28 A at 460 VAC Rated Load |
| HP Rating | 2 hp |
| Speed Rating | 1725 rpm |
| Phase | 3 ph |
| Frequency Rating | 50/60 Hz |
| Frame Size | 56Y |
