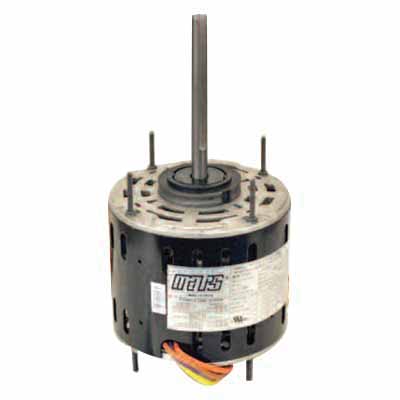

US Motors® Fan and Blower Motor, 115 V, 7.3/6.9/5.5/3.6/2.8 A, 1/2 hp, 1/3 hp, 1/4 hp, 1/5 hp, 1/6 hp, 1085 to 1100 rpm, 1 ph Phase, 60 Hz, Open Air Over Motor Enclosure, 48Y Frame, 1/2 in Dia x 5 in L Shaft, Reversible Rotation, 4 Speed, 65.9 % Efficiency, Ball Bearing, Hub Ring Mounting, Direct Drive, Continuous, Class B Insulation Class, 6-Poles, 1 Service Factor, Rolled Steel, 40 deg C, 5.625 in Dia x 9.8 in L
| Bearing Type | Ball |
| Dimensions | 5.625 in Dia x 9.8 in L |
| Drive Type | Direct |
| Duty Type | Continuous |
| Efficiency | 65.9 % |
| Material | Rolled Steel |
| Mounting Type | Hub Ring |
| Number of Poles | 6 |
| Number of Speeds | 4 |
| Rotation Type | Reversible |
| Service Factor | 1 |
| Shaft Size | 1/2 in Dia x 5 in L |
| Temperature Rating | 40 deg C |
| Voltage Rating | 115 V |
| Amperage Rating | 7.3/6.9/5.5/3.6/2.8 A |
| HP Rating | 1/2 hp, 1/3 hp, 1/4 hp, 1/5 hp, 1/6 hp |
| Speed Rating | 1085 to 1100 rpm |
| Phase | 1 ph |
| Frequency Rating | 60 Hz |
| Motor Enclosure Type | Open Air Over |
| Frame Size | 48Y |
| Insulation Class | Class B |
- Studs extensions on popular models
- Designed for use with 370 V capacitor
- 24 in lead length
- Connection and capacitor information furnished in the nameplate data
- Bearings have all angle throughst system
- Automatic reset thermal overload protection
- Capacitor 10/7.5 uF at 370 V
- All angle-mounting position
