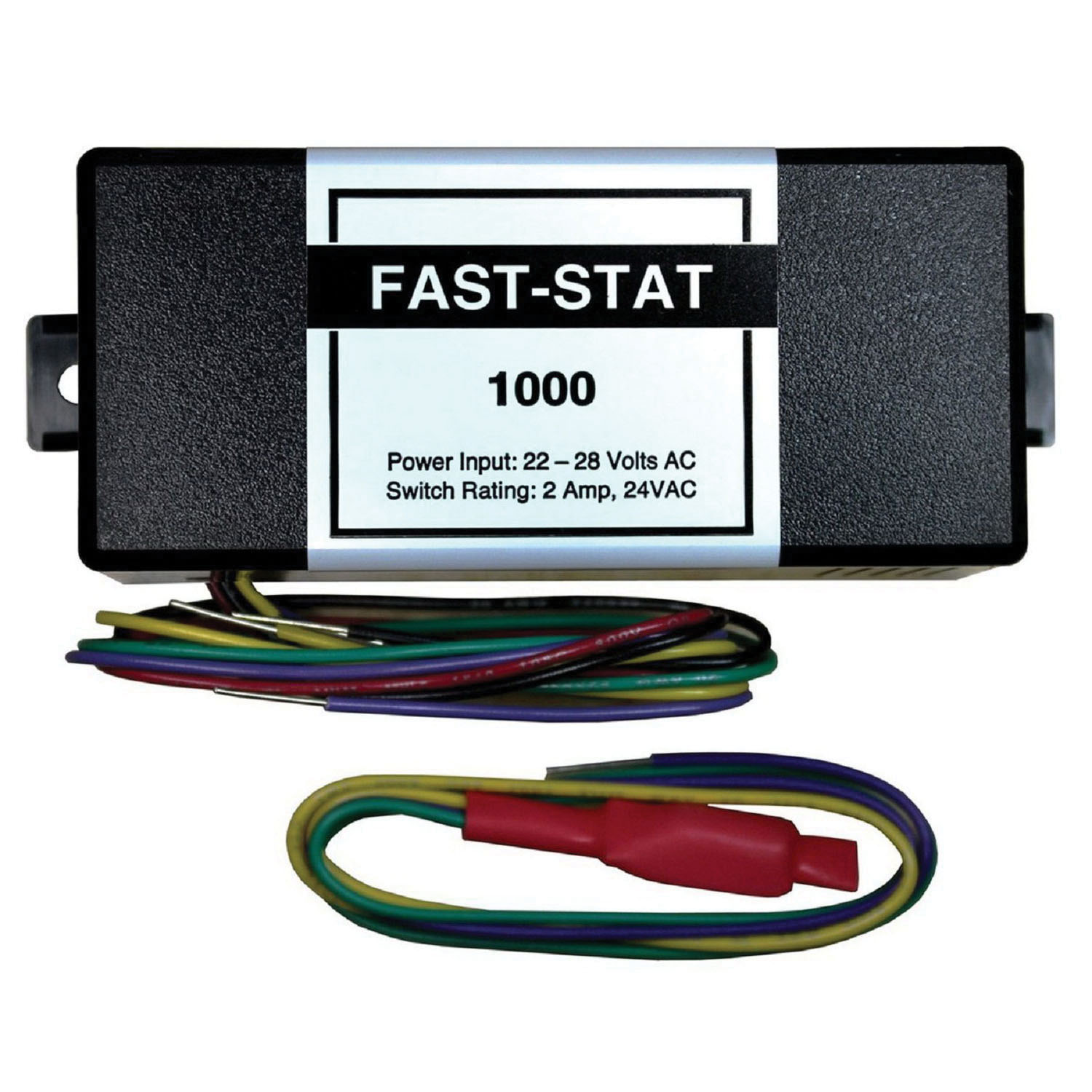

Fast-Stat Wire Extender, 1-1/2 Inch Length, 4-3/4 Inch Width, 4-3/4 Inch Height, Black

  • Brand Name: FAST-STAT
  • IPN: 1000 FAST-STAT
  • MPN: 1000
  • UPC: 662766348736
  • Login for Availability $locale.get('product.label.hazmat')

FAST-STAT Wire Extender, 24 VAC, 2 A, R, W, Y, G Terminal Designation, Black, 1-1/2 in L x 4-3/4 in W x 4-3/4 in H

Color       Black
Dimensions       1-1/2 in L x 4-3/4 in W x 4-3/4 in H
Terminal Designation       R, W, Y, G
Voltage Rating       24 VAC
Amperage Rating       2 A
  • The model 1000 adds one wire to any system
  • It can be used for thermostats that need a common connection, adding fan or humidity control and many other uses
  • It is also used to install a two-stage A/C when there is only a 2-wire condenser cable but 4-wires are needed
  • Fast-Stat wiring extenders electronically add more wires to a control cable
  • Saves significant time and expense as compared to repulling of new cables
  • Causes no damage to walls or ceilings as compared to access holes that are often needed when re-pulling cables
  • The sender and receiver communicate over the existing thermostat cable and/or outdoor unit cable
  • Not a wireless system and therefore avoids all the problems that wireless systems may have
  • No batteries required, all Fast-Stat models are powered by the existing 24 V transformer
  • Compatible with all conventional wiring systems using R, C, W, W2, Y, Y2, G, O/B and other terminals
  • Works with old and new systems, can be connected to older systems such as thermopile milli V, standing pilot systems, intermittent pilot controllers, fan centers and more
  • Can be used with oil burners, zone controllers and other systems that require "dry contact switching"
  • Works over long cable lengths up to 500 ft and more
  • Fast-Stat wiring extenders do not produce interference with other electronic devices nor are they affected electronic devices that produce large amounts of interference
  • Many Fast-Stat wiring extenders can be used in the same building or complex without interference between units
  • Low power use, most FAST-STAT models use less than 3 W of power
